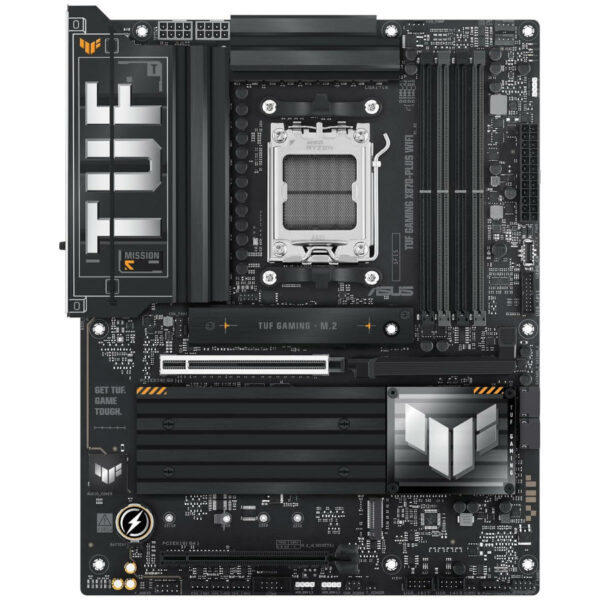

ASUS TUF Gaming X870-PLUS WiFi

Description

CPU

• Support for: AMD Ryzen™ 7000 Series Processors; AMD Ryzen™ 8000 Series Processors; AMD Ryzen™ 9000 Series Processors
• AMD Socket AM5
• AMD X870 Chipset

MEMORY

• Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
• 4 x DIMM slots, max. 192GB, DDR5
• ECC and Non-ECC, Un-buffered DIMM
  • Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
• Dual channel memory architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• ASUS Enhanced Memory Profile (AEMP)

EXPANSION SLOT

• CPU:
  • 1 x PCIe 5.0 x16 slot (supports x16 mode)
    • AMD Ryzen™ 9000 & 7000 Series Desktop Processors
    • The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
• Chipset:
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
    • The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.

AUDIO

• Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC

STORAGE

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
  • M.2_2 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
    • The PCIEX16(G5) shares bandwidth with M.2_2. The PCIEX16(G5) will run to x8 mode when M.2_2 runs.
• AMD X870 Chipset
  • M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
  • M.2_4 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
    • The PCIEX16(G4) shares bandwidth with M.2_4. The PCIEX16(G4) will be disabled when M.2_4 runs.
  • 2 x SATA 6Gb/s ports

LAN

• Realtek 2.5Gb Ethernet

WI-FI & BLUETOOTH®

• Wi-Fi 7
  • 2×2 Wi-Fi 7 (802.11be)
  • Supports 2.4/5/6GHz frequency band
  • Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
  • Bluetooth® v5.4

POWER CONNECTORS

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors

INTERNAL USB CONNECTORS

• 1 x USB 3.2 Gen 2×2 (20Gbps) connector (supports USB Type-C® with up to 30W PD Fast-charge)
• 1 x USB 3.2 Gen 1 (5Gbps) header, supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers, support 4 additional USB 2.0 ports

FAN CONNECTORS

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header

SYSTEM CONNECTORS

• 1 x Clear CMOS header
• 1 x Chassis Intrusion header
• 1 x COM Port header
• 1 x Front Panel Audio header (F_AUDIO)
• 1 x 10-1 pin Front System Panel header
• 1 x Thermal Sensor header

LED FEATURES

• 3 x Addressable Gen 2 headers

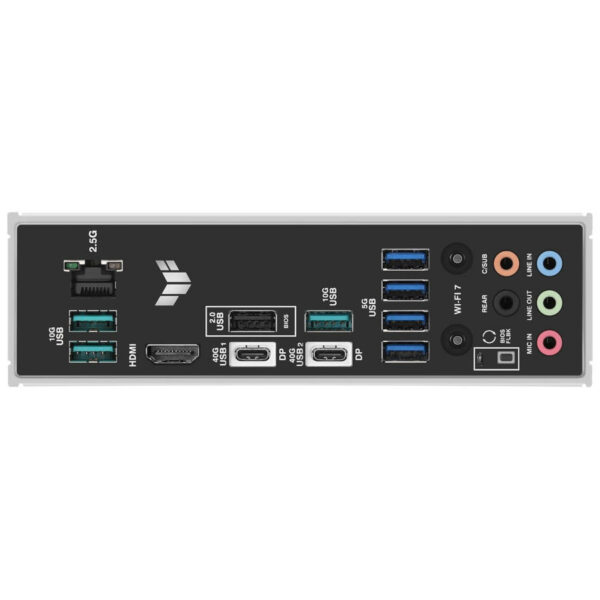

BACK PANEL PORTS

• 2 x USB4® (40Gbps) (2 x USB Type-C®) ports
• 3 x USB 3.2 Gen 2 (10Gbps) ports (3 x Type-A)
• 4 x USB 3.2 Gen 1 (5Gbps) ports (4 x Type-A)
• 1 x USB 2.0 port (1 x Type-A)
• 1 x HDMI™ port
• 1 x Wi-Fi module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™ button
