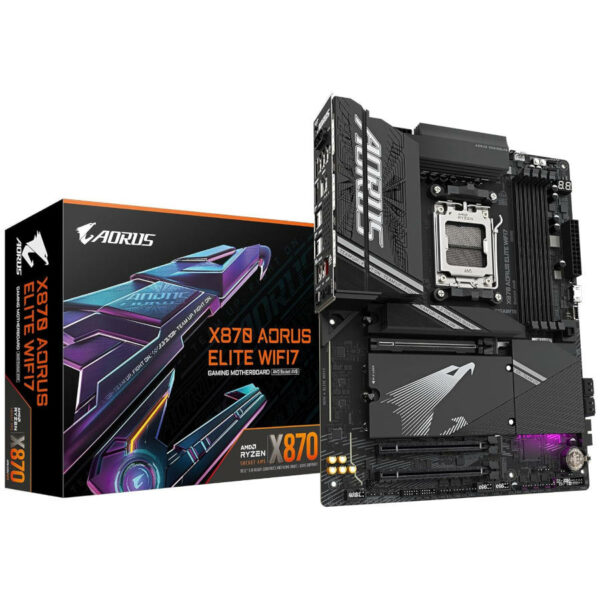

GIGABYTE X870 AORUS Elite WIFI7

Description

CPU

• Support for: AMD Ryzen™ 7000 Series Processors; AMD Ryzen™ 8000 Series Processors; AMD Ryzen™ 9000 Series Processors
• AMD Socket AM5
• AMD X870 Chipset

MEMORY

• Support for DDR5 8000 (OC) / 7800 (OC) / 7600 (OC) / 7200 (OC) / 7000 (OC) / 6800 (OC) / 6666 (OC) / 6600 (OC) / 6400 (OC) / 6200 (OC) / 6000 (OC) / 5600 (OC) / 5200 / 4800 / 4400 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

EXPANSION SLOT

• CPU:
  • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
    • When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
• Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    • The PCIEX4 slot shares bandwidth with the M2D_SB connector. The PCIEX4 slot becomes unavailable when a device is installed in the M2D_SB connector.
  • 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x2 (PCIEX2)

AUDIO

• Realtek® ALC1220 CODEC
  • The back panel line out jack supports DSD audio.
• High Definition Audio 2/4/5.1/7.1-channel
  • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• Support for S/PDIF Out

STORAGE

• 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
• 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
  • AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
  • When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
• 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
• 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

LAN

•  Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

WI-FI & BLUETOOTH®

• MediaTek Wi-Fi 7 MT7925 (PCB rev. 1.0)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  • Support for 11be 160MHz wireless standard
• Realtek® Wi-Fi 7 RTL8922AE (PCB rev. 1.1)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.4
  • Support for 11be 160MHz wireless standard

POWER CONNECTORS

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors

INTERNAL USB CONNECTORS

• 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
• 1 x USB 3.2 Gen 1 header (supports up to 2 x USB 3.2 Gen 1 ports)
• 2 x USB 2.0/1.1 headers (supports up to 4 x USB 2.0/1.1 ports)

FAN CONNECTORS

• 1 x CPU fan header
• 1 x CPU fan/water cooling pump header
• 4 x system fan headers
• 2 x system fan/water cooling pump headers

SYSTEM CONNECTORS

• 1 x front panel header
• 1 x front panel audio header
• 1 x noise detection header
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
• 1 x HDMI port (Note)
• 1 x power button
• 1 x reset button
• 2 x temperature sensor headers
• 1 x reset jumper
• 1 x Clear CMOS jumper

LED FEATURES

• 3 x addressable RGB Gen2 LED strip headers
• 1 x RGB LED strip header

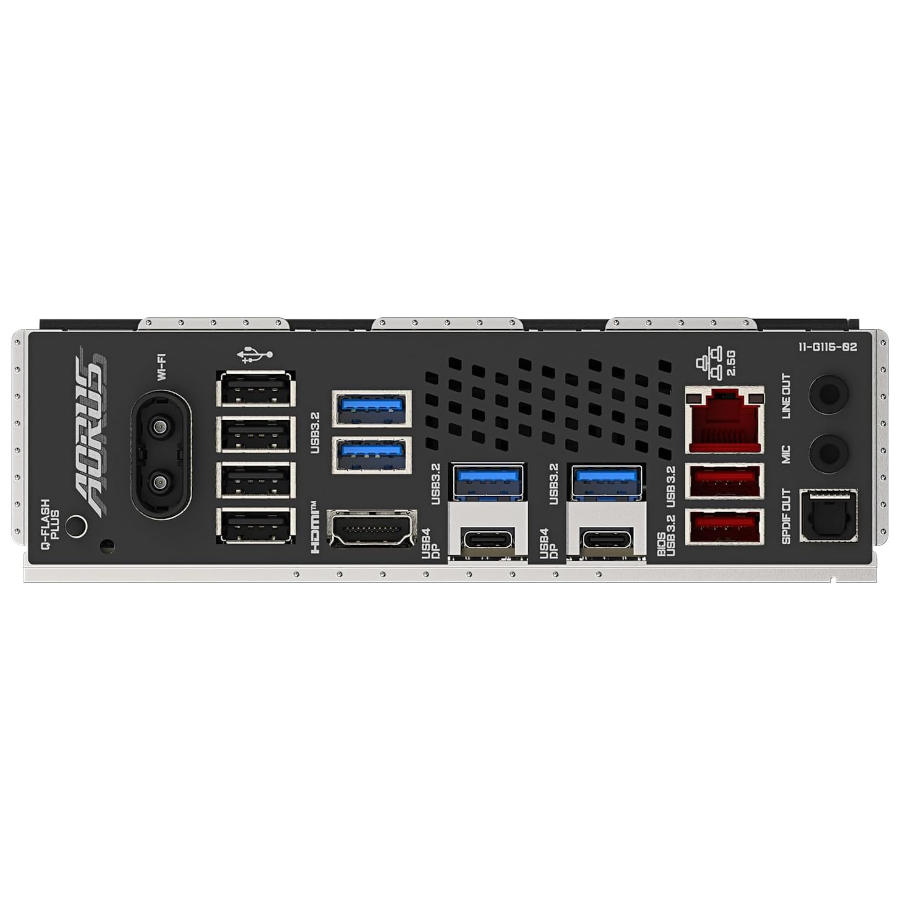

BACK PANEL PORTS

• 1 x Q-Flash Plus button
• 1 x HDMI port (Note)
• 2 x antenna connectors (2T2R)
• 2 x USB4® USB Type-C® ports (DisplayPort (Note))
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 4 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks

(Note) Actual support may vary by CPU
