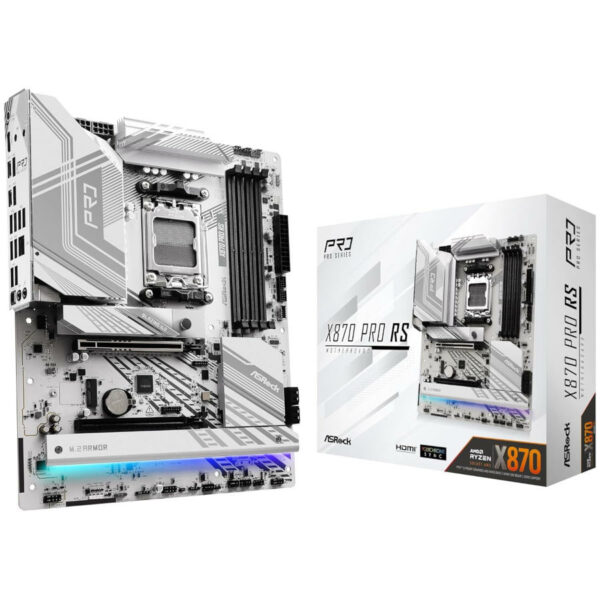

ASRock X870 Pro RS

Description

CPU

• Support for: AMD Ryzen™ 7000 Series Processors; AMD Ryzen™ 8000 Series Processors; AMD Ryzen™ 9000 Series Processors
• AMD Socket AM5
• AMD X870 Chipset

MEMORY

• Dual Channel DDR5 Memory Technology
• 4 x DDR5 DIMM Slots
• Supports DDR5 ECC/non-ECC, un-buffered memory up to 8000+(OC)*
• Max. capacity of system memory: 256GB
• Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

EXPANSION SLOT

• CPU:
  • 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode
    • PCIE1 will run at Gen5x16 with 9000 and 7000 series processors
• Chipset:
  • 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode
    • If M2_2 is occupied, PCIE2 will be disabled.
  • 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module

AUDIO

• 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)

STORAGE

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • 1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode
• AMD X870 Chipset
  • 1 x Hyper M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 PCIe Gen4x4 (64 Gb/s) mode
    • If M2_2 is occupied, PCIE2 will be disabled.
  • 1 x Ultra M.2 Socket (M2_3, Key M), supports type 2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes
    • If SATA3_1 or SATA3_2 is occupied, M2_3 will downgrade to Gen3x2 mode.
  • 4 x SATA3 6.0 Gb/s Connectors

LAN

• 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
• Dragon RTL8125BG

POWER CONNECTORS

• 1 x 24-pin ATX main power connector
• 2 x 8-pin ATX 12V power connectors

INTERNAL USB CONNECTORS

• 1 x USB 3.2 Gen 2×2 (20Gbps) connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 (5Gbps) header, supports 2 additional USB 5Gbps ports
• 2 x USB 2.0 headers, support 4 additional USB 2.0 ports

FAN CONNECTORS

• 2 x CPU Fan Connectors (4-pin) (Smart Fan Speed Control)
• 4 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
• 1 x AIO Pump Fan Connector (4-pin) (Smart Fan Speed Control)

SYSTEM CONNECTORS

• 1 x Front Panel Audio Connector
• 1 x Thermistor Cable Header
• 1 x Power LED and Speaker Header

LED FEATURES

• 1 x RGB LED Header
• 3 x Addressable LED Headers

BACK PANEL PORTS

• 2 x Antenna Mounting Points
• 1 x HDMI Port
• 1 x Optical SPDIF Out Port
• 2 x USB4 Type-C Ports (40 Gb/s) – Supports USB PD 3.0 up to 5V@3A (15W) charging
• 4 x USB 3.2 Gen1 Type-A Ports
• 6 x USB 2.0 Ports
• 1 x RJ-45 LAN Port
• 1 x BIOS Flashback Button
• 1 x Line Out Jack (Gold Audio Jack)
• 1 x Microphone Input Jack (Gold Audio Jack)
