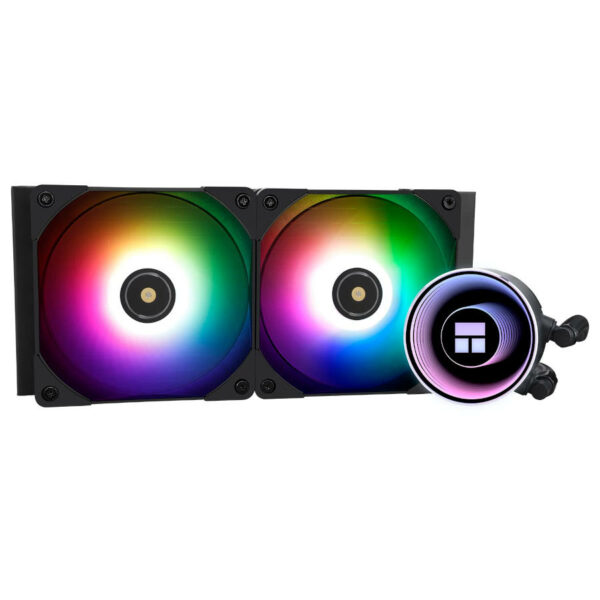

Description
Compatibility
- Intel：LGA115X/1200/1700/2011/2066
- AMD：FM1/FM2/FM2+/AM2/AM2+/AM3/AM3+/AM4/AM5
Pump
- Pump Dimensions：W72 mm x D72 mm x H54 mm
- Pump Rated Speed：5300 RPM±10% (MAX)
- Pump Noise Level：28 dBA(MAX)
- Pump Power Consumption：1.5W (MAX)
- Pump Rated Voltage：12V DC
- Connector：4 PIN PWM
- ARGB Connector：3 PIN 5V
Radiator/Tube
- Radiator Dimensions: 277×120×27 mm(L×W×H)
Fans
- TL-E12B-S SPECIFICATION：
- Dimension：L120 mm x W120 mm x H25 mm
- Weight: 150 g
- Rated Speed：2000 RPM±10% (MAX)
- Noise Level：27.7 dBA (MAX)
- Air Flow：72.37 CFM (MAX)
- Air Pressure：2.87 mm H2O (MAX)
- Connector：4 PIN PWM
- ARGB Connector：3 PIN 5V
