Description

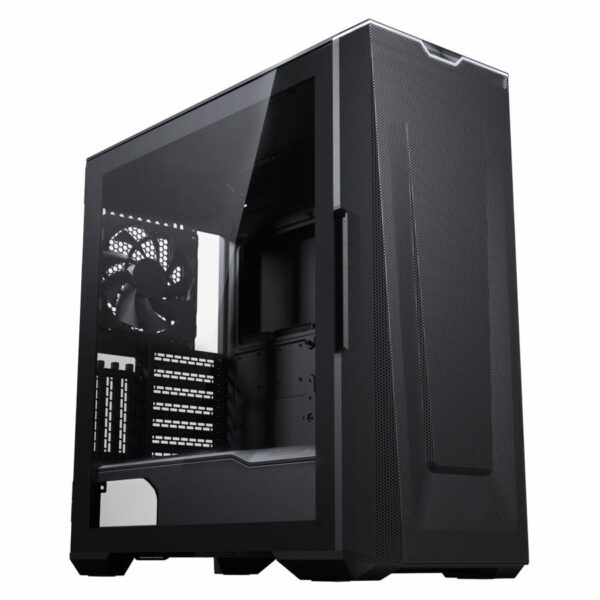

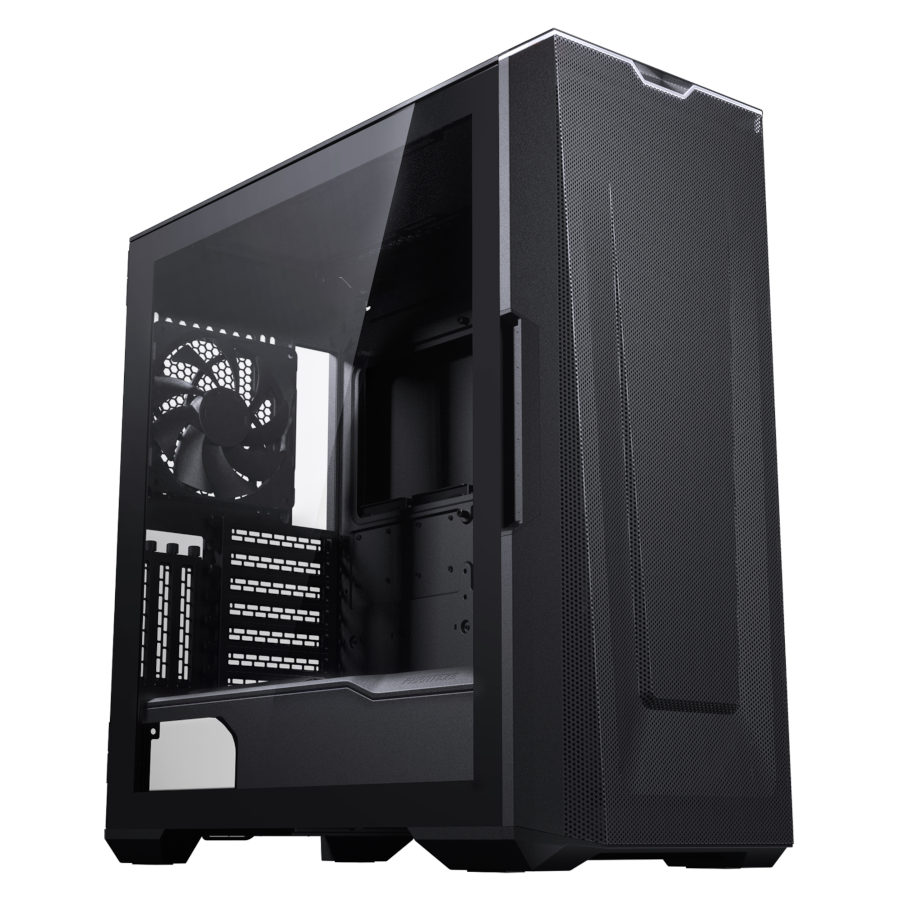

The Eclipse G500A pushes the limit with its high airflow design to unlock next-gen CPU and GPU performance. Both the front and top panels feature Phanteks’ Ultra-fine Performance Mesh design that combines high airflow performance with excellent dust filtration, all-in-one. With its spacious interior, the G500A is ready for powerful gaming setups, offering 420 radiator in the front, 360 radiator in the top, while having plenty of space for full-length GPUs, multiple HDD and SSD locations, and a vertical GPU mounting option.
Specifications & Compatibility
- Motherboard Compatibility: ATX / mATX / Mini ITX / E-ATX (up to 280mm)
- CPU cooler max height: 185 mm
- GPU max length: 435 mm
- PSU max length: 250/195 with 4 HDD Brackets
- 2.5″ drive bay: 9 (9 included
- 3.5″ drive bay: 10 (2 included)
- Expansion slots: 7
- Front interface: 2x USB 3.0 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x Microphone/Headphone
Fans
- Front fan: 3x 120 mm / 3x 140 mm
- 3x 140 mm included
- Top fan: 3x 120 mm / 3x 140 mm
- Rear fan: 1x 120 mm / 1x 140 mm
- 1x 140 mm included
Radiator
- Front radiator: 120 / 140 / 240 / 280 / 360 / 420 mm
- Top radiator: 120 / 140 / 240 / 280 / 360 mm
- Rear radiator: 120 mm
Dimensions
- Case dimensions (LxWxH): 500 x 240 x 515 mm
