Description

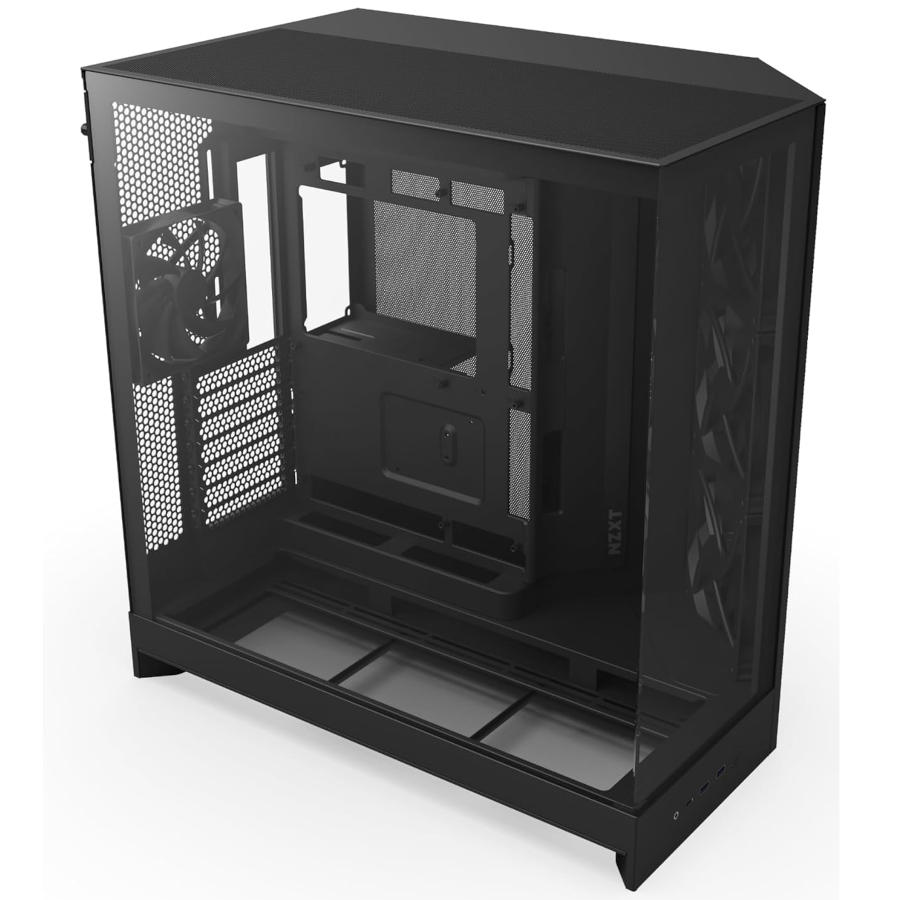

The H9 Flow is a spacious mid-tower ATX case built for high-performance builds, balancing airflow and aesthetics. Its dual-chamber design improves cooling and cable management, while perforated panels, angled fans, and ample fan and radiator support deliver optimal thermal performance.
- Dual-Chamber Design: Separates main components from the PSU and drives for improved thermal performance and cable management.
- Optimized Airflow: Perforated steel panels and angled front-right fans ensure efficient cooling for high-performance builds.
- Pre-Installed Fans: Includes three F140Q (CV) fans in the front-right and one F120Q (CV) fan in the rear. CV = Case Version (3-pin DC)
- Ten-Fan Capacity: Supports up to nine 140mm fans across the top, front-right, and bottom, plus one 120mm fan in the rear.
- Panoramic View: Showcase every detail of your build with seamless, wraparound tempered glass paneling.
- Large Radiators & GPUs: Fits up to a 420mm radiator on the top and front-right, with plenty of clearance for high-end graphics cards.
- Easy Cable Management: Extra-wide channels, built-in Velcro straps, and tie-down points make cable routing effortless.
- Back-Connect Ready: Compatible with rear-connecting motherboards like ASUS BTF and MSI Project Zero for a cable-free look.
Specifications & Compatibility
- Motherboard Compatibility: E-ATX (Up to 277 mm), ATX, Micro-ATX, Mini-ITX
- CPU Cooler Height:Up to 165 mm
- GPU Length:
- Up to 459 mm (with <56 mm thickness fans installed at the front-right)
- Up to 410 mm (with 56 mm thick 420 mm AIO and fans installed at the front-right)
- PSU Length:Up to 200 mm
- 2.5″ drive bay: 4+2
- 3.5″ drive bay: 2
- Expansion slots: 7
- Front interface: 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2×2 Type-C, 1x Headset Audio Jack
Fans
- Front-Right fan: 3x 120 mm / 3x 140 mm
- 3x F140Q (Case Version) included
- Top fan: 3x 120 mm / 3x 140 mm
- Bottom: 3x 120 mm / 3x 140 mm
- Rear fan: 1x 120 mm / 1x 140 mm
- 1x F120Q (Case Version) included
Radiator
- Front-Right radiator: 120 / 140 / 240 / 280 / 360 / 420 mm
- Top radiator: 120 / 140 / 240 / 280 / 360 / 420 mm
- Thickness: up to 80 mm (360mm); up to 62 mm (420mm)
- Bottom: up to 360 mm
- Rear radiator: 120 / 140 mm
Dimensions
- Case dimensions (LxWxH): 481 x 315 x 506 mm
