Description

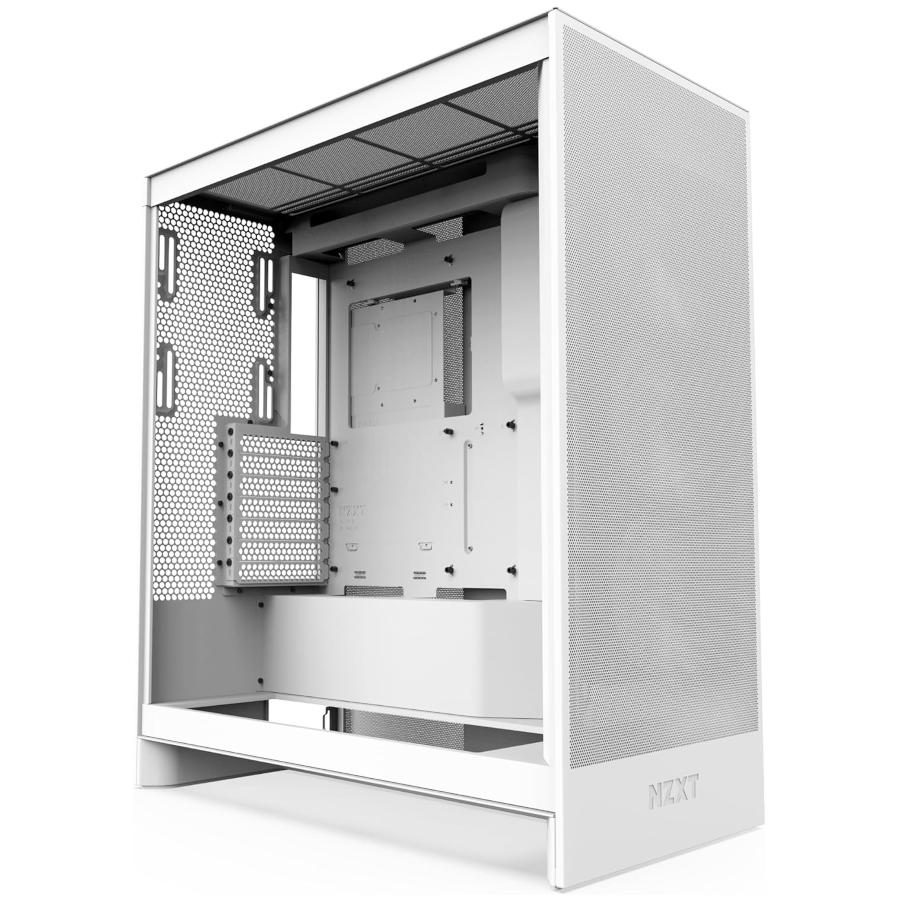

The H7 Flow revolutionizes GPU cooling in a classic mid-tower form factor. Its vertical PSU layout allows space for 3 x 120mm bottom fans, offering efficient cooling without expanding the case footprint.
- Supports three bottom-mounted 120mm fans for direct GPU cooling while retaining a narrow mid-tower footprint.
- Comes equipped with three front-mounted 120mm fans for exceptional out-of-the-box cooling.
- High-performance mesh panels maximize airflow for both intake and exhaust, as well as filter dust.
- Supports up to 420mm radiators in the front and 360mm radiators in the top for powerful cooling potential.
- Intuitive cable management system with wide channels, built-in hooks, and included straps for easy routing.
- Capacity for up to 10 fans in total: 3 up top, 3 in front, 3 on bottom, and 1 in the rear.
- Conveniently access 2 x USB-A and 1 x USB-C ports located on the top panel.
- Tool-less access to the front, top, and side panels makes building and upgrading a breeze.
Specifications & Compatibility
- Motherboard Compatibility: E-ATX (Up to 277mm), ATX, Micro-ATX, Mini-ITX
- CPU Cooler Height:Up to 185 mm
- GPU Length:Up to 410 mm
- PSU Length:Up to 200 mm
- 2.5″ drive bay: 2+2
- 3.5″ drive bay: 2
- Expansion slots: 7
- Front interface: 2x USB 3.2 Gen 1 Type-A, 1x USB 3.2 Gen 2 Type-C, 1x Headset Audio Jack
Fans
- Front fan: 3x 120 mm / 3x 140 mm
- 3x F120Q Airflow Fan (Case Version) included
- Top fan: 3x 120 mm / 2x 140 mm
- Rear fan: 1x 120 mm / 1x 140 mm
Radiator
- Top radiator: 120 / 140 / 240 / 280 / 360 / 420 mm
- Front radiator: 120 / 140 / 240 / 280 / 360 mm
- Rear radiator: 120 / 140 mm
Dimensions
- Case dimensions (LxWxH): 468 x 244 x 544 mm
