Description

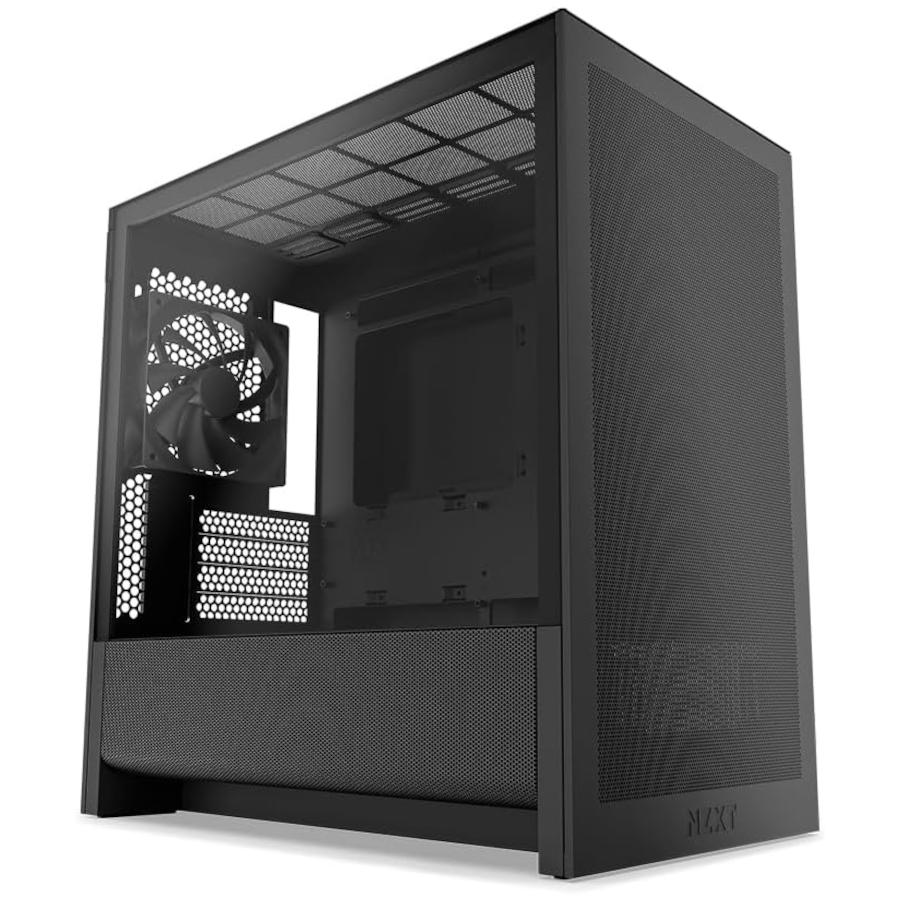

The H3 Flow micro-ATX case combines a space-efficient design with high-performance capability. Designed to support full-sized components, it features ultra-fine mesh panels and a ventilated PSU shroud to maintain consistent, optimized airflow throughout your build.
- Space-Saving Size: A space-efficient micro-ATX chassis that accommodates high-performance components without compromise.
- High-Airflow Design: Ultra-fine steel mesh panels and a ventilated PSU shroud maximize airflow while effectively filtering out dust.
- Extensive Cooling Support: Supports up to a 280 mm radiator in the front, a 240 mm radiator on top, and up to seven fans for powerful, customizable cooling performance.
- Full-Size GPU Support: Fits graphics cards up to 377 mm (without front fans), 352 mm (with front fans), or 317 mm (with front radiator and fans installed).
- Pre-Installed Rear Fan: Includes one F120Q (CV) fan at the rear to provide efficient exhaust airflow straight out of the box. CV = Case Version (3-pin DC)
- Simplified Cable Management: Integrated cable channels and multiple tie-down points make it easy to route and organize cables for a clean, organized build.
- Back-Connect Motherboard Compatible: Ready for rear-connector motherboards like ASUS BTF and MSI Project Zero, enabling a clean, cable-free aesthetic.
- Tool-Free Access: Removable top, front, and side panels allow for easy upgrades and cleaning—no tools required.
Specifications & Compatibility
- Motherboard Compatibility: mATX / Mini ITX
- Power supply type: ATX
- PSU max length: 185 mm
- CPU cooler max height: 170 mm
- GPU max length:
- Up to 377 mm (without front fans)
- Up to 352 mm (with front fans)
- Up to 317 mm (with front radiator and fans)
- 2.5″ SSD Support: 1+2
- 3.5″ HDD Support: 1
- Expansion slots: 4
- Front interface: 1x USB 3.2 Type-A, 1x USB 3.2 Type-C
Fans
- Front fan: 2x 120 mm / 2x 140 mm
- Top fan: 2x 120 mm / 2x 140 mm
- Bottom fan: 2x 120 mm
- Rear fan: 1x 120 mm
- 1x F120Q Case Version included
Radiator
- Front radiator: 280 mm
- Up to 63 mm radiator + fan thickness
- Top radiator: 240 mm
- Up to 70 mm radiator + fan thickness
Dimensions
- Case dimensions (LxWxH): 400 x 225 x 389 mm
