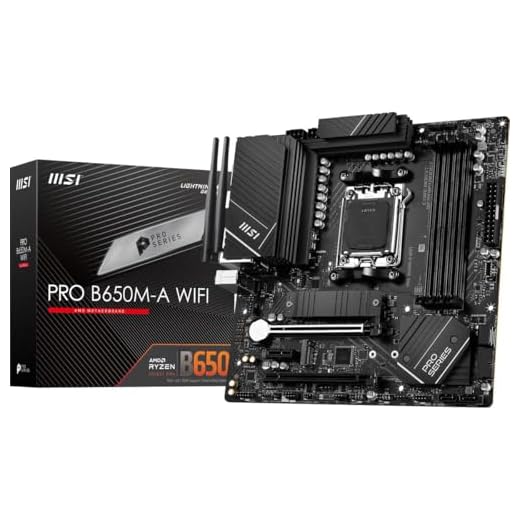

Description
CPU
- Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
- AMD Socket AM5
- AMD B650 Chipset
MEMORY
- 4x DDR5, Maximum Memory Capacity 256GB
- Memory Support DDR5 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 7200+ MHz
- 1DPC 2R Max speed up to 6000+ MHz
- 2DPC 1R Max speed up to 6000+ MHz
- 2DPC 2R Max speed up to 5400+ MHz
- Supports Dual-Channel mode
- Supports non-ECC, un-buffered memory
- Supports AMD EXPO
EXPANSION SLOT
- 4x PCI-E x16 slot
- Supports x16/x1/x4/x1 (For Ryzen™ 7000 Series processors)
- Supports x8/x1/x4/x1 (For Ryzen™ 7 8700G and Ryzen™ 5 8600G processors)
- Supports x4/x1/x4/x1 (For Ryzen™ 5 8500G processor)
- PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
- PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
AUDIO
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
STORAGE
- 2x M.2
- M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 22110/2280 devices
- M.2_2 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
- 6x SATA 6G
M2_2 supports PCIe 4.0 x2 speed when Ryzen™ 5 8500G is installed
LAN
- Realtek® 8125BG 2.5G LAN controller
WI-FI & BLUETOOTH®
- AMD Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
- Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3
- Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
POWER CONNECTORS
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connector
INTERNAL USB CONNECTORS
- 1x USB 3.2 Gen 2 10Gbps Type-C front panel port (From B650 chipset)
- 1x USB 3.2 Gen 1 5Gbps connector (From B650 chipset)
- Supports additional 2 USB 3.2 Gen 1 5Gbps ports
- 2x USB 2.0 connectors (From B650 chipset)
- Supports additional 4 USB 2.0 ports
FAN CONNECTORS
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 4x 4-pin system fan connectors
SYSTEM CONNECTORS
- 1x Clear CMOS jumper
- 1x OC safe boot jumper
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x TPM module connector
- 1x Tuning Controller connector
LED FEATURES
- 1x EZ LED Control switch
- 2x 4-pin RGB LED connectors
- 2x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
- 4x EZ Debug LED
BACK PANEL PORTS
- 1x Flash BIOS button
- 1x DisplayPort
- 1x HDMI™ port
- 1x 2.5 Gbps LAN (RJ45) port
- 3x USB 3.2 Gen 2 10Gbps Type-A ports (From CPU)
- 1x USB 3.2 Gen 2×2 20Gbps Type-C port (From B650 chipset)
- 4x USB 3.2 Gen 1 5Gbps Type-A port (From Hub-1074)
- 2x Wi-Fi antenna connectors
- 6x audio jacks
