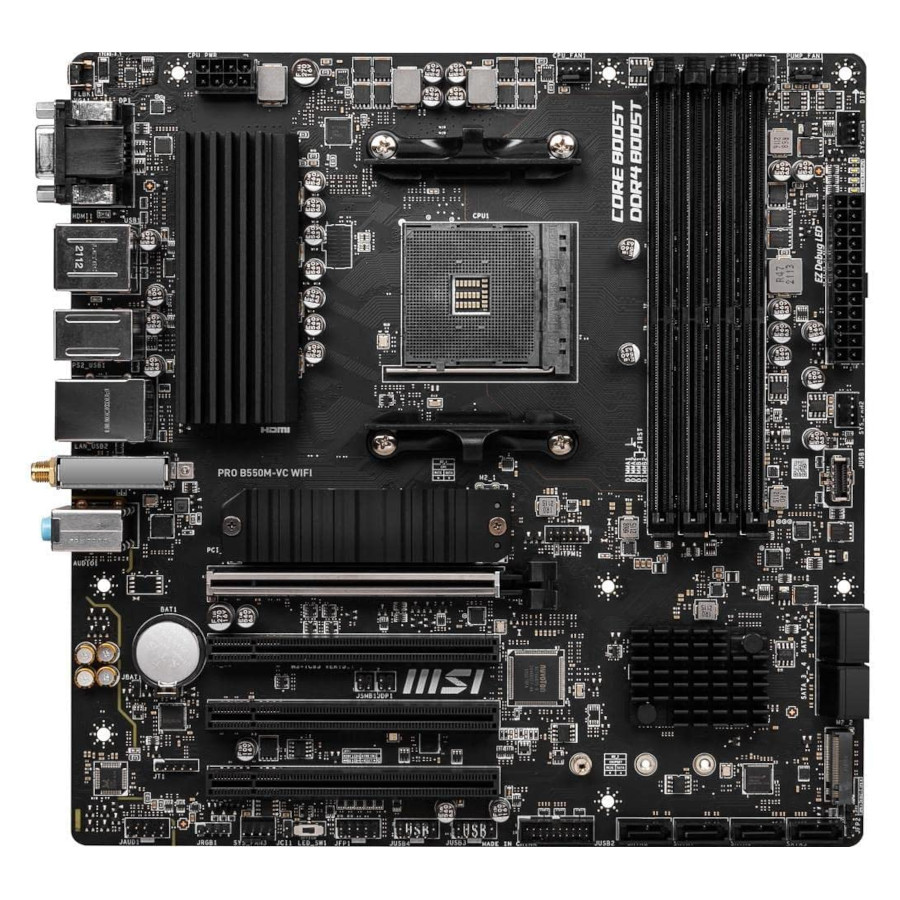

Description
PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity.
DIMENSIONS
- mATX Form Factor
CPU
- Supports AMD Ryzen™ 5000 Series, 5000 G-Series, 4000 G-Series, and 3000 Series processors
- Processor socket AM4
- AMD B550 Chipset
MEMORY
- 4x DDR4 memory slots, support up to 128GB
- Supports DDR4 1866/ 2133/ 2400/ 2667/ 2800/ 2933/ 3000/ 3066/ 3200 MHz by JEDEC
- Supports DDR4 2667/ 2800 /2933 /3000 /3066 /3200 /3466 /3600/ 3733 /3866 /4000 /4133 /4266 /4400+ MHz by A-XMP OC MODE
- 1DPC 1R max speed 4400 MHZ
- 1DPC 2R max speed 3733 MHZ
- 2DPC 1R max speed 3866 MHZ
- 2DPC 2R max speed 3466 MHZ
- Dual channel memory architecture
- Supports non-ECC UDIMM memory
- Supports ECC UDIMM memory (non-ECC mode)
- Supports un-buffered memory
EXPANSION SLOT
- 1x PCIe 3.0/ 4.0 x16 slot (PCI_E1)
- 3x PCIe 3.0 x16 slots, support PCIe x1 speed
AUDIO
- Realtek® ALC892/ALC897 Codec
- 7.1-Channel High Definition Audio
STORAGE
- 2x M.2 slots (Key M)
- M2_1 slot (from AMD Processor)
- Supports PCIe 4.0/ 3.0 x4
- Supports SATA 6Gb/s
- Supports 2242/ 2260/ 2280/ 22110 storage devices
- M2_2 slot (from AMD B550 chipset)
- Supports PCIe 3.0 x4
- Supports 2242/ 2260/ 2280 storage devices
- M2_1 slot (from AMD Processor)
- 8x SATA 6Gb/s ports
RAID
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
LAN
- 1x Realtek® 8111H Gigabit LAN controller
WI-FI & BLUETOOTH®
- AMD Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX
- Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.2**
POWER CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
INTERNAL USB CONNECTORS
- 1x USB 3.2 Gen 1 5Gbps Type-C port
- 1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
FAN CONNECTORS
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 6x 4-pin system fan connectors
SYSTEM CONNECTORS
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1xTPM module connector
- 1x Clear CMOS jumper
LED FEATURES
- 1x 4-pin RGB LED connector
- 1x 3-pin RAINBOW LED connectors
- 1x EZ LED Control switch
- 4x EZ Debug LED
BACK PANEL PORTS
- 1x Flash BIOS Button
- 1x VGA port
- 1x Display port
- 1x HDMI port
- 2x USB 3.2 Gen 2 10Gbps Type-A ports
- 1x PS/2 keyboard/ mouse combo port
- 2x USB 2.0 Type-A ports
- 1x LAN (RJ45) port
- 2x USB 3.2 Gen 1 5Gbps Type-A ports
- 2x Wi-Fi Antenna connectors
- 3x Audio jacks
