Description
Specifications
- Dimension: (DxWxH): 160 x 150 x 86 mm
- Input Voltage Range: 100~240 VAC
- Fan Size: 140 mm
- Efficiency Rating: 80 PLUS Gold (up to 90% efficiency)
Power Connectors
- ATX12V (Motherboard) 20+4 pin: 1x
- EPS12V (CPU) 4+4 pin: 2x
- PCIe (VGA) 6+2 pin: 6x
- SATA 15 pin: 8x
- Peripheral 4 pin: 4x
- FDD 4 pin: 1x
Protection
-
OCP / OVP / OPP / OTP / SCP / UVP

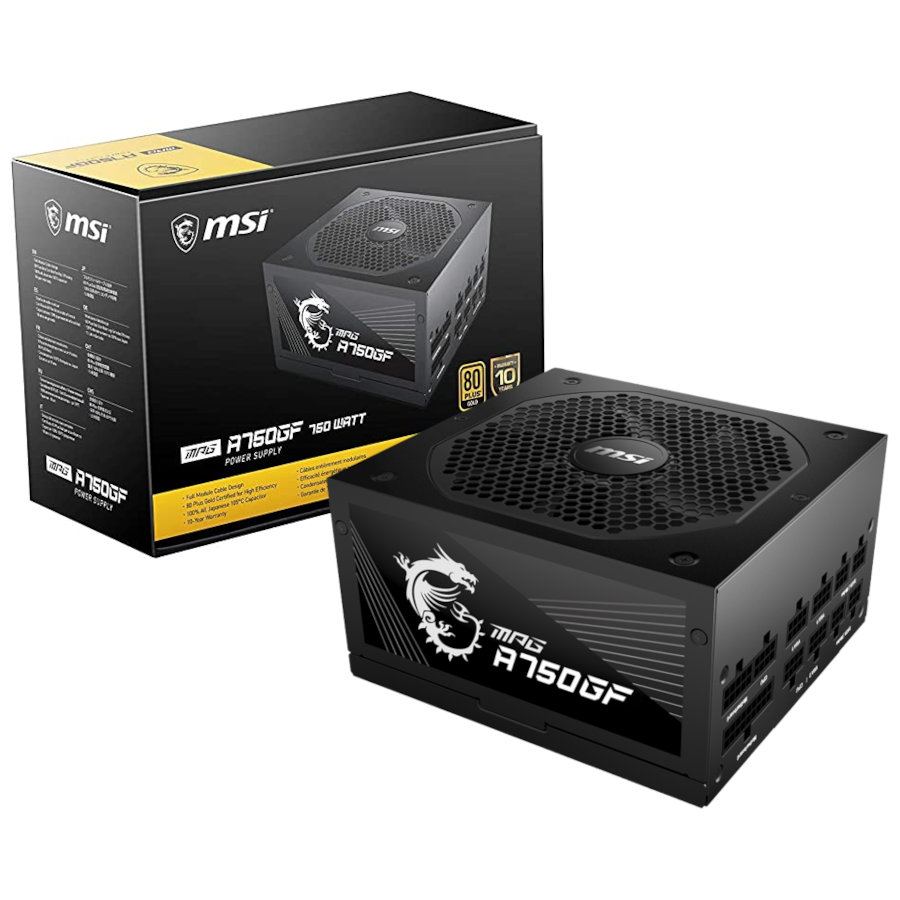

| MSI MAG A750GF | ||||||||
| Voltage | +5V | +3.3V | +12VMBPH | +12VCPU | +12VVGA1 | +12VVGA2 | -12V | +5Vsb |
| Max load | 22.0A | 22.0A | 25.0A | 25.0A | 35.0A | 35.0A | 0.3A | 2.5A |
| Peak load | — | — | — | — | — | — | — | 3.0A |
| Combined power | 120W | 750W | ||||||
| Regulation | ±4% | ±4% | ±4% | ±4% | ±4% | ±4% | ±10% | ±4% |
| Ripple & Noise | 40mV | 40mV | 60mV | 60mV | 60mV | 60mV | 80mV | 50mV |
