Description
CPU
- Supports Intel® Core™ Ultra Processors (Series 2)
- Intel LGA 1851 Socket
- Intel B860 Chipset
MEMORY
- 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
- Memory Support 9200 – 6400 (OC) MT/s / 6400 – 4800 (JEDEC) MT/s
- Max. overclocking frequency:
- DPC 1R Max speed up to 9200+ MT/s
- 1DPC 2R Max speed up to 7200+ MT/s
- 2DPC 1R Max speed up to 6400+ MT/s
- 2DPC 2R Max speed up to 5600+ MT/s
- Supports Intel® POR Speed and JEDEC Speed
- Supports Memory Overclocking and Intel® XMP 3.0
- Supports Dual-Controller Dual-Channel mode
- Supports Non-ECC, Un-buffered memory
- Supports CUDIMM
EXPANSION SLOT
- CPU:
- PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
- Chipset:
- PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)
- PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
- PCI_E3 slot will run at x2 speed when installing PCIe device in PCI_E2 slot.
AUDIO
- Realtek® ALC1220P Codec
- 7.1-Channel High Definition Audio
STORAGE
- CPU:
- M.2_1 Source (From CPU) supports up to PCIe 5.0 x4 , supports 2280/2260 devices
- Chipset
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
- M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
- 4x SATA 6G
LAN
- 1x Intel® Killer™ E5000 5Gbps LAN
WI-FI & BLUETOOTH®
- Intel® Killer™ BE1750x Wi-Fi 7
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps
- Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
- Supports Bluetooth® 5.4**, MLO, 4KQAM
*6GHz band support may depend on every country’s regulations and Wi-Fi 7 will be ready in Windows 11 SV3
POWER CONNECTORS
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connectors
- 1x 8-pin PCIe power connector
INTERNAL USB CONNECTORS
- 1x USB 10Gbps Type-C front panel port
- 1x USB 5Gbps connector
- Supports additional 2 USB 5Gbps ports
- 2x USB 2.0 connectors
- Supports additional 4 USB 2.0 ports
FAN CONNECTORS
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump/ system fan connector
- 5x 4-pin system fan connectors
SYSTEM CONNECTORS
- 1x Front panel audio connector
- 2x System panel connectors
- 1x Chassis Intrusion connector
- 1x Tuning Controller connector
- 1x TPM module connector
- 1x TBT5_1 connector (Supports RTD3)
- 1x EZ Conn-Header V1 (JAF_1)
- 1x Clear CMOS jumper
LED FEATURES
- 2x 4-pin RGB LED connectors
- 3x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
- 4x EZ Debug LED
- 1x EZ Memory Detection LED

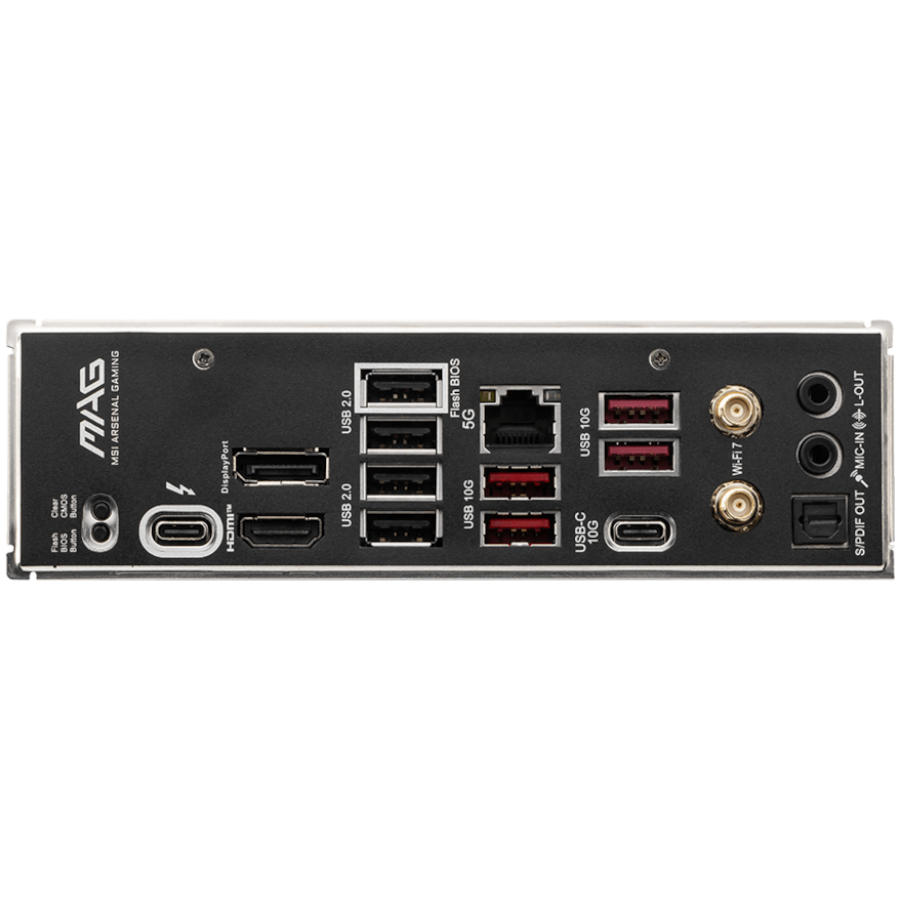

BACK PANEL PORTS
- 1x Clear CMOS button
- 1x Flash BIOS button
- 1x Thunderbolt™ 4 USB-C® port (From CPU)
- 1x DisplayPort
- 1x HDMI™ port
- 4x USB 2.0 Type-A ports (From Hub GL850G)
- 1x 5Gbps LAN (RJ45) port
- 4x USB 10Gbps Type-A ports (From Hub RTS5420)
- 1x USB 10Gbps Type-C port (From B860 chipset)
- 2x Wi-Fi Antenna connectors
- 2x audio jacks
- 1x Optical S/PDIF Out connector
