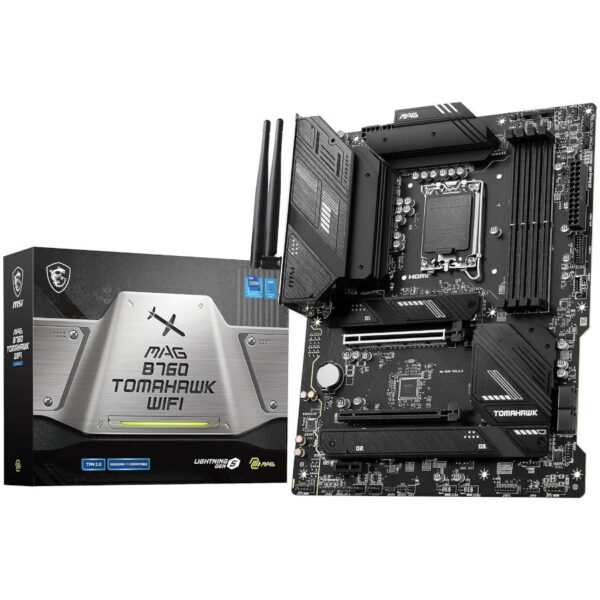

MSI MAG B760 Tomahawk WIFI DDR5

Description

CPU

• Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
• Processor socket LGA1700
• Intel^® B760 Chipset

MEMORY

• 4x DDR5, Maximum Memory Capacity 256GB
• Memory Support 7000+(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
• Max. overclocking frequency:
  • 1DPC 1R Max speed up to 7000+ MHz
  • 1DPC 2R Max speed up to 6600+ MHz
  • 2DPC 1R Max speed up to 6400+ MHz
  • 2DPC 2R Max speed up to 5600+ MHz
• Supports Dual-Channel mode
• Supports non-ECC, un-buffered memory
• Supports Intel® Extreme Memory Profile

EXPANSION SLOT

• 1x PCIe 5.0 x16 slots (From CPU)
• 1x PCIe 3.0 x4 slot (From B760 Chipset)
• 1x PCIe 4.0 x1 slot (From B760 Chipset)

AUDIO

• Realtek® ALC897 Codec
• 7.1-Channel USB High Performance Audio
• Supports S/PDIF output

STORAGE

• 3x M.2 slots (Key M)
  • M.2_1 Source (From CPU)
    • supports up to PCIe 4.0 x4
    • supports 22110/2280/2260/2242 devices
  • M.2_2 Source (From Chipset)
    • supports up to PCIe 4.0 x4
    • supports 2280/2260/2242 devices
  • M.2_3 Source (From Chipset)
    • supports up to PCIe 4.0 x4 / SATA mode
    • supports 2280/2260/2242 devices
• 4x SATA 6Gb/s ports

Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

LAN

• 1x Realtek 2.5Gbps LAN controller

WI-FI & BLUETOOTH®

• Intel® Wi-Fi 6E
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
    • Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
  • Supports 802.11 a/ b/ g/ n/ ac/ ax
• Supports Bluetooth® 5.3, FIPS, FISMA
  • Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.

POWER CONNECTORS

• 1x 24-pin ATX main power connector
• 2x 8-pin ATX 12V power connector

INTERNAL USB CONNECTORS

• 1x USB 3.2 Gen 2 10Gbps Type-C connector
• 1x USB 3.2 Gen 1 5Gbps connector
  • (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
• 2x USB 2.0 Type-A connectors
  • (supports additional 4 USB 2.0 ports)

FAN CONNECTORS

• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump fan connector
• 5x 4-pin system fan connectors

SYSTEM CONNECTORS

• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis intrusion connector
• 1x TPM module connector
• 1x Tuning controller connector
• 1x TBT connector (Supports RTD3)
• 1x Clear CMOS jumper
• 2x 4-pin RGB LED connectors
• 2x 3-pin ARGB Gen2 LED connectors
• 4x EZ Debug LED

BACK PANEL PORTS

• 4x USB 2.0 Type-A ports (From Hub GL850G)
• 1x DisplayPort port
• 1x HDMI™ port
• 1x 2.5Gbps LAN (RJ45) port
• 4x USB 3.2 Gen 2 10Gbps Type-A ports (From GL3590 Hub)
• 1x USB 3.2 Gen 2×2 20Gbps Type-C port (From B760 chipset)
• 2x Wi-Fi antenna connectors
• 5x Audio jacks
• 1x Optical S/PDIF Out connector
