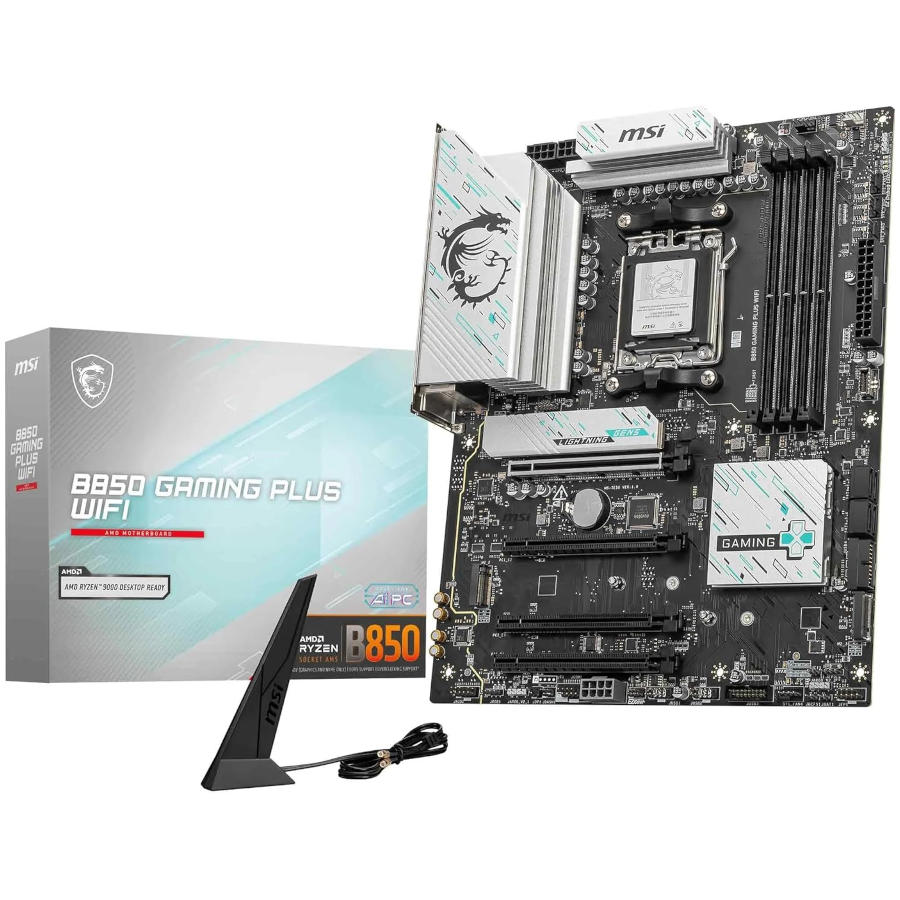

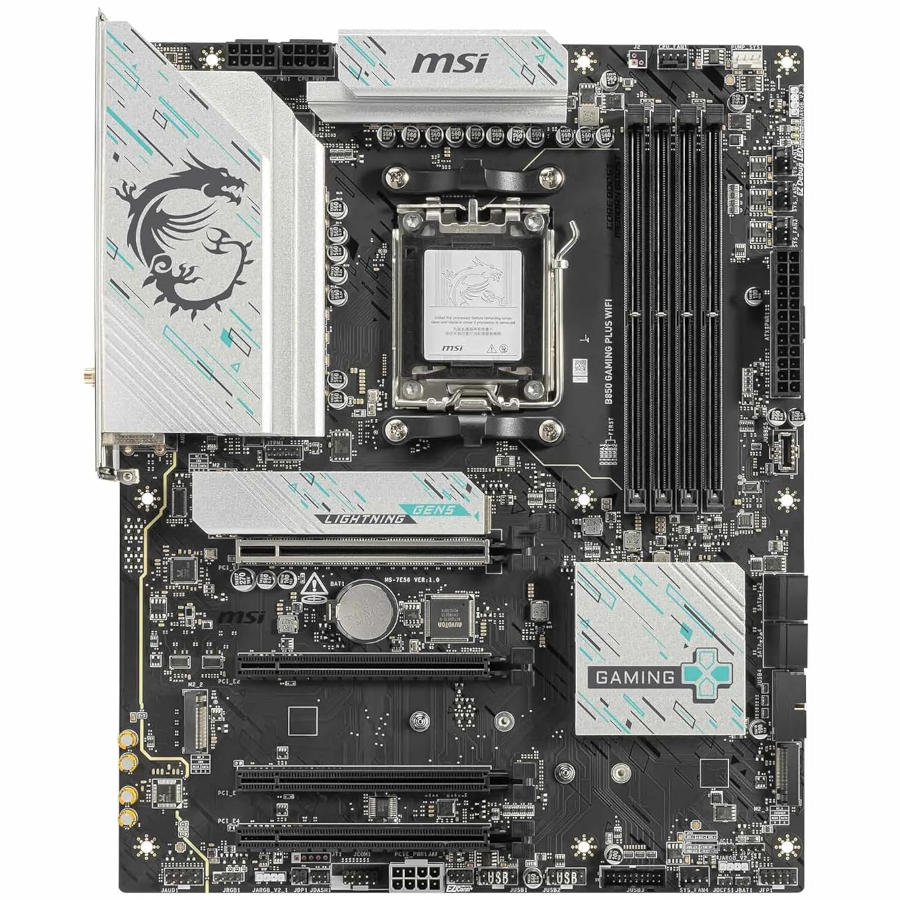

MSI B850 GAMING PLUS WIFI

Description

CPU

• Support for: AMD Ryzen™ 7000 Series Processors; AMD Ryzen™ 8000 Series Processors; AMD Ryzen™ 9000 Series Processors
• AMD Socket AM5
• AMD B850 Chipset

MEMORY

• 4x DDR5 UDIMM, Maximum Memory Capacity 256GB
  • DPC 1R Max speed up to 8200+ MT/s
  • 1DPC 2R Max speed up to 6400+ MT/s
  • 2DPC 1R Max speed up to 6400+ MT/s
  • 2DPC 2R Max speed up to 6000+ MT/s
• Supports AMD POR Speed and JEDEC Speed
• Supports Memory Overclocking and AMD EXPOTM
• Supports Dual-Channel mode
• Supports Non-ECC, Un-buffered memory

EXPANSION SLOT

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
  • 4x PCI-E x16 slot PCI_E1 Gen PCIe 5.0 supports up to x16
• Chipset:
  • PCI_E2 Gen PCIe 3.0 supports up to x1
    • PCI_E2, PCI_E3 & PCI_E4 share the bandwidth.
  • PCI_E3 Gen PCIe 4.0 supports up to x4
    • PCI_E3 slot will run at x2 speed when installing devices in the PCI_E2 or PCI_E4 slot
  • PCI_E4 Gen PCIe 3.0 supports up to x1
    • PCI_E2, PCI_E3 & PCI_E4 share the bandwidth.

AUDIO

• Realtek® ALC897
• 7.1-Channel High Definition Audio

STORAGE

• AMD Ryzen™ 9000 & 7000 Series Desktop Processors
  • M.2_1 Source (From CPU) supports up to PCIe 5.0 x4
    • Supports 2280/2260 devices
  • M.2_2 Source (From CPU) supports up to PCIe 4.0 x4
    • Supports 22110/2280 devices
• Chipset
  • M.2_3 Source (From Chipset) supports up to PCIe 4.0 x2
    • Supports 2280/2260 devices
  • 4x SATA 6G

LAN

• Realtek® 8126VB 5G LAN

WI-FI & BLUETOOTH®

• Wi-Fi 7 Solution
  • The Wireless module is pre-installed in the M.2 (Key-E) slot
  • Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz* (320MHz) up to 5.8Gbps
  • Supports 802.11 a/ b/ g/ n/ ac/ ax/ be
  • Supports Bluetooth® 5.4**, MLO, 4KQAM

POWER CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector
• 1 x 4-pin ATX 12V power connector

INTERNAL USB CONNECTORS

• 1 x USB Type-C® header, with USB 3.2 Gen 1 support
• 2 x USB 3.2 Gen 1 header (supports up to 4 x USB 3.2 Gen 1 ports)
• 2 x USB 2.0/1.1 headers (supports up to 4 x USB 2.0/1.1 ports)

FAN CONNECTORS

• 1x 4-pin CPU fan connector
• 1x 4-pin water-pump/ system fan connector
• 4x 4-pin system fan connectors

SYSTEM CONNECTORS

• 1x Clear CMOS jumper
• 1x OC safe boot jumper
• 1x Front panel audio connector
• 2x System panel connectors
• 1x Chassis Intrusion connector
• 1x TPM module connector
• 1x Serial port connector
• 1x Tuning Controller connector
• 1x EZ Conn-Header V1 (JAF_1)

LED FEATURES

• 1x 4-pin RGB LED connector
• 3x 3-pin A-RAINBOW V2 (ARGB Gen2) LED connectors
• 4x EZ Debug LED

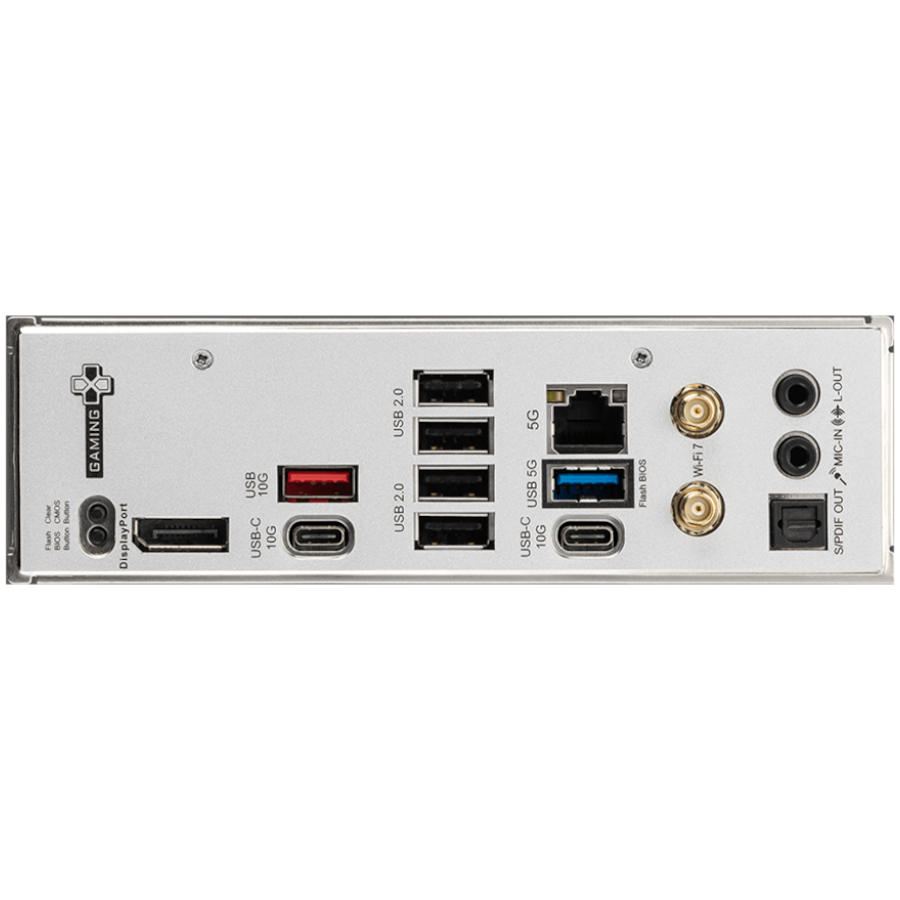

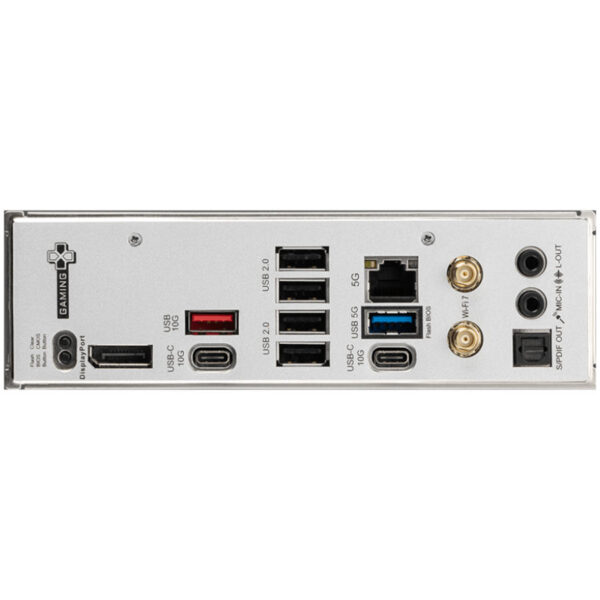

BACK PANEL PORTS

• 1x Clear CMOS button
• 1x Flash BIOS button
• 1x DisplayPort*
• 1x USB 10Gbps Type-A port (From CPU)
• 4x USB 2.0 ports (From GL850G)
• 1x 5Gbps LAN (RJ45) jack
• 1x USB 5Gbps Type-A port (From CPU)
• 2x USB 10Gbps Type-C ports (From CPU)
• 2x Wi-Fi Antenna connectors
• 2x audio jacks
• 1x Optical S/PDIF Out connector

(Note) Actual support may vary by CPU
