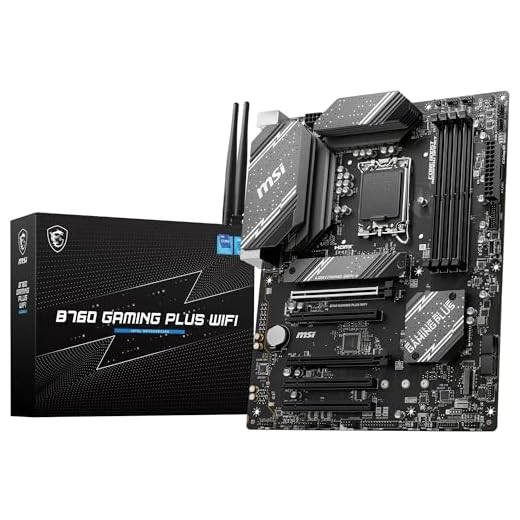

Description
CPU
- Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors
- Processor socket LGA1700
- Intel® B760 Chipset
MEMORY
- 4x DDR5, Maximum Memory Capacity 192GB
- Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
- Max. overclocking frequency:
- 1DPC 1R Max speed up to 6800+ MHz
- 1DPC 2R Max speed up to 6400+ MHz
- 2DPC 1R Max speed up to 6000+ MHz
- 2DPC 2R Max speed up to 5600+ MHz
- Supports Intel® XMP 3.0 OC
- Supports Dual-Controller Dual-Channel mode
- Supports non-ECC, un-buffered memory
EXPANSION SLOT
- 5x PCIe x16 slots
- PCI_E1 slot (From CPU)
- Supports up to PCIe 4.0 x16
- PCI_E2 slot (From B760 chipset)
- Supports up to PCIe 3.0 x1
- PCI_E3 slot (From B760 chipset)
- Supports PCIe 4.0 x4
- PCI_E4 slot (From B760 chipset)
- Supports PCIe 3.0 x1
- PCI_E5 slot (From B760 chip
- Supports PCIe 3.0 x1
- PCI_E1 slot (From CPU)
AUDIO
- Realtek® ALC897 Codec
- 7.1-Channel High Definition Audio
- Supports S/PDIF output
STORAGE
- 2x M.2
- M.2_1 Source (From CPU)
- Supports up to PCIe 4.0 x4
- Supports 22110/2280/2260/2242 devices
- M.2_2 Source (From Chipset)
- Supports up to PCIe 4.0 x4 / SATA mode
- Supports 2280/2260/2242 devices
- M.2_1 Source (From CPU)
- 4x SATA 6G
- SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID
- Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
LAN
- 1x Realtek® RTL8125BG 2.5G LAN
WIRELESS LAN & BLUETOOTH®
- Intel® Wi-Fi 6E
- The Wireless module is pre-installed in the M.2 (Key-E) slot
- Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz (160MHz) up to 2.4Gbps
- Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
- Supports 802.11 a/ b/ g/ n/ ac/ ax
- Supports Bluetooth® 5.3, FIPS, FISMA
- Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
POWER CONNECTORS
- 1x 24-pin ATX main power connector
- 2x 8-pin ATX 12V power connector
INTERNAL USB CONNECTORS
- 1x USB 3.2 Gen1 Type C ports
- 1x USB 3.2 Gen 1 5Gbps connectors (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
- 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
FAN CONNECTORS
- 1x 4-pin CPU fan connector
- 1x 4-pin water-pump fan connector
- 5x 4-pin system fan connectors
SYSTEM CONNECTORS
- 2x Front Panel (JFP)
- 1x Chassis Intrusion (JCI)
- 1x Front Audio (JAUD)
- 1x Printer Port (JLPT)
- 1x Com Port (JCOM)
- 1x TBT connector (JTBT, supports RTD3)
- 2x Addressable V2 RGB LED connector (JARGB_V2)
- 1x RGB LED connector(JRGB)
- 1x TPM pin header(Support TPM 2.0)
BACK PANEL PORTS
- 1x PS/2 port
- 4x USB 2.0 Type-A ports
- 1x DisplayPort
- 1x HDMI™ port
- 1x 2.5G LAN (RJ45) jack
- 2x USB 3.2 Gen 2 10Gbps Type-A ports
- 1x USB 3.2 Gen 2 10Gbps Type-C port
- 2x Wi-Fi Antenna connectors
- 5x Audio jacks
- 1x Optical S/PDIF OUT connector
