Description
CPU
- Support for: AMD Ryzen™ 7000 Series Processors; AMD Ryzen™ 8000 Series Processors; AMD Ryzen™ 9000 Series Processors
- AMD Socket AM5
- AMD X870E Chipset
MEMORY
- Support for DDR5 8600(OC) / 8400(OC) / 8200(OC) / 8000(OC) / 7800(OC) / 7600(OC) / 7200(OC) / 7000(OC) / 6800(OC) / 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8 / 2Rx8 / 1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
EXPANSION SLOT
- CPU:
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode
- The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2B_CPU or M2C_CPU connector.
- 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
- Chipset:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
- 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
AUDIO
- Realtek® ALC1220 CODEC
- The back panel line out jack supports DSD audio.
- Support for DTS:X® Ultra
- High Definition Audio 2/4/5.1/7.1-channel
- You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
- Support for S/PDIF Out
STORAGE
- 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- 2 x M.2 connectors (M2B_CPU, M2C_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs
- AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
- When the M2B_CPU or M2C_CPU connector is populated, the PCIEX16 slot operates at up to x8 mode.
- 1 x M.2 connector (M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
- 4 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
- RAID 5 is only available on AMD Ryzen™ 9000 Series Processors.
LAN
- Realtek® 5GbE LAN chip (5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
WI-FI & BLUETOOTH®
- Qualcomm® Wi-Fi 7 QCNCM865
- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands
- BLUETOOTH 5.3
- Support for 11be 320MHz wireless standard
POWER CONNECTORS
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors
INTERNAL USB CONNECTORS
- 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
- 2 x USB 3.2 Gen 1 header (supports up to 4 x USB 3.2 Gen 1 ports)
- 2 x USB 2.0/1.1 headers (supports up to 4 x USB 2.0/1.1 ports)
FAN CONNECTORS
- 1 x CPU fan header
- 1 x CPU fan/water cooling pump header
- 4 x system fan headers
- 2 x system fan/water cooling pump headers
SYSTEM CONNECTORS
- 1 x front panel header
- 1 x front panel audio header
- 1 x noise detection header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
- 1 x HDMI port (Note)
- 1 x power button
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
- 2 x temperature sensor headers
- Voltage Measurement Points
LED FEATURES
- 4 x addressable RGB Gen2 LED strip headers
- 1 x RGB LED strip header

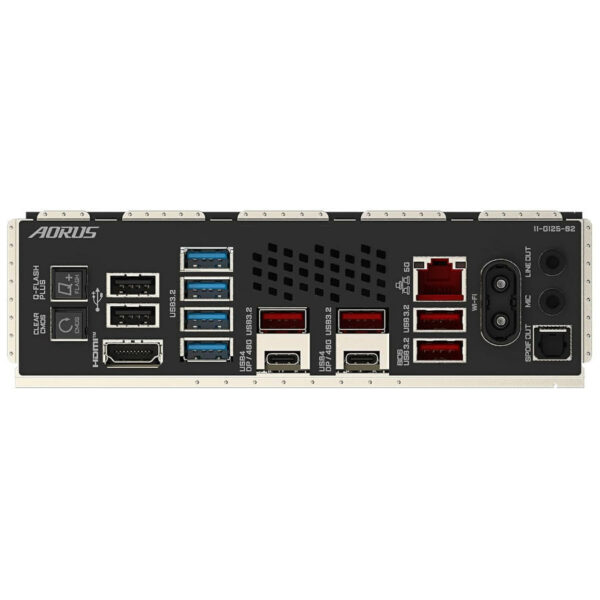

BACK PANEL PORTS
- 1 x Q-Flash Plus button
- 1 x Clear CMOS button
- 1 x HDMI port (Note)
- 2 x USB4® USB Type-C® ports (DisplayPorts (Note))
- 4 x USB 3.2 Gen 2 Type-A ports (red)
- 4 x USB 3.2 Gen 1 ports
- 2 x USB 2.0/1.1 ports
- 1 x RJ-45 port
- 2 x antenna connectors (2T2R)
- 2 x audio jacks
- 1 x optical S/PDIF Out connector
(Note) Actual support may vary by CPU
