Description

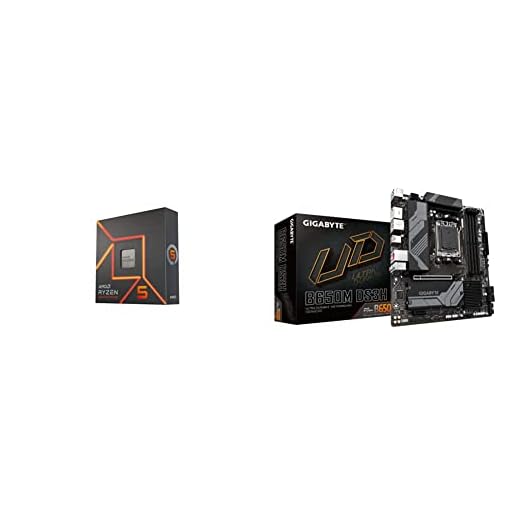

AMD Ryzen 5 7600X
- Product: AMD Ryzen 5 7600X
- CPU Socket: AM5
- CPU Cores: 6
- Threads: 12
- L2 Cache: 6MB
- L3 Cache: 32MB
- Default TDP: 105W
- Max. Boost Clock: 5.3GHz
- Base Clock: 4.7GHz
- Processor Graphics: AMD Radeon™ Graphics
- PCI Express Version: PCIe® 5.0
- System Memory Type: DDR5
- Max Memory Speed: 5200
Gigabyte B650M DS3H
CPU
- Support for: AMD Ryzen™ 7000 Series Processors
- AMD Socket AM5
- AMD B650 Chipset
MEMORY
- Support for DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / MT/s memory modules
- 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
- Dual channel memory architecture
- Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
- Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules
EXPANSION SLOT
- CPU:
- 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
- Chipset:
- 1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1 (PCIEX1)
AUDIO
- Realtek® Audio CODEC
- High Definition Audio
- 2/4/5.1/7.1-channel
- You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
STORAGE
- CPU:
- 2 x M.2 connectors (Socket 3, M key, type 25110/2280 PCIe 4.0 x4/x2 SSD support)
- Chipset:
- 4 x SATA 6Gb/s connectors
- RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
- RAID 0, RAID 1, and RAID 10 support for SATA storage devices
LAN
- Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
POWER CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connector
INTERNAL USB CONNECTORS
- 1 x USB Type-C® header, with USB 3.2 Gen 2 support
- 1 x USB 3.2 Gen 1 header
- 2 x USB 2.0/1.1 headers
FAN CONNECTORS
- 1 x CPU fan header
- 3 x system fan headers
SYSTEM CONNECTORS
- 1 x front panel header
- 1 x front panel audio header
- 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
- 1 x serial port header
- 1 x reset button
- 1 x reset jumper
- 1 x Clear CMOS jumper
LED FEATURES
- 1 x addressable LED strip header
- 1 x RGB LED strip header
BACK PANEL PORTS
- 4 x USB 2.0/1.1 ports
- 1 x PS/2 keyboard/mouse port
- 2 x DisplayPorts
- 1 x HDMI port
- 1 x USB 3.2 Gen 2 Type-A port (red)
- 1 x USB Type-C® port, with USB 3.2 Gen 2 support
- 1 x Q-Flash Plus button
- 1 x RJ-45 port
- 2 x USB 3.2 Gen 1 ports
- 3 x audio jacks
