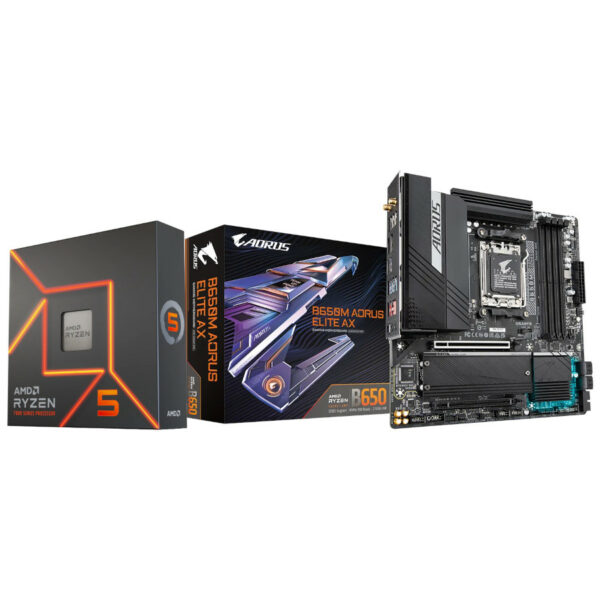

Bundle – Gigabyte B650M AORUS ELITE AX + AMD Ryzen 5 7600X

Description

AMD Ryzen 5 7600X

• Product: AMD Ryzen 5 7600X
• CPU Socket: AM5

• CPU Cores: 6
• Threads: 12
• L2 Cache: 6MB
• L3 Cache: 32MB

• Default TDP: 105W
• Max. Boost Clock: 5.3GHz
• Base Clock: 4.7GHz
• Processor Graphics: AMD Radeon™ Graphics

• PCI Express Version: PCIe® 5.0
• System Memory Type: DDR5
• Max Memory Speed: 5200

GIGABYTE B650M AORUS ELITE AX

CPU

• Support for: AMD Ryzen™ 7000 Series Processors
• AMD Socket AM5
• AMD B650 Chipset

MEMORY

• Support for DDR5 6666(OC) / 6600(OC) / 6400(OC) / 6200(OC) / 6000(OC) / 5600(OC) / 5200 / 4800 / 4400 MT/s memory modules
• 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
• Dual channel memory architecture
• Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
• Support for AMD EXtended Profiles for Overclocking (AMD EXPO™) and Extreme Memory Profile (XMP) memory modules

EXPANSION SLOT

• CPU:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16)
    • For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
• Chipset:
  • 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

AUDIO

• Realtek® Audio CODEC
• High Definition Audio
• 2/4/5.1/7.1-channel
  • You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.
• Support for S/PDIF Out

STORAGE

•  CPU:
  • 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0* x4/x2 SSD support) (M2A_CPU)
    • Actual support may vary by CPU.
  • 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)
• Chipset:
  • 4 x SATA 6Gb/s connectors
• RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices
• RAID 0, RAID 1, and RAID 10 support for SATA storage devices

LAN

• Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

WI-FI & BLUETOOTH®

• AMD Wi-Fi 6E RZ616 (MT7922A22M) (For PCB rev. 1.0)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.2
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
• Intel® Wi-Fi 6E AX210 (For PCB rev. 1.1)
  • WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
  • BLUETOOTH 5.3
  • Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
• (Actual data rate may vary depending on environment and equipment.)

POWER CONNECTORS

• 1 x 24-pin ATX main power connector
• 1 x 8-pin ATX 12V power connector

INTERNAL USB CONNECTORS

• 1 x USB Type-C® header, with USB 3.2 Gen 2×2 support
• 1 x USB 3.2 Gen 1 header
• 2 x USB 2.0/1.1 headers

FAN CONNECTORS

• 1 x CPU fan header
• 1 x water cooling CPU fan header
• 3 x system fan headers
• 1 x system fan/water cooling pump header

SYSTEM CONNECTORS

• 1 x front panel header
• 1 x front panel audio header
• 1 x serial port header
• 1 x THB_U4 add-in card connector
• 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
• 1 x reset button
• 1 x reset jumper
• 1 x Clear CMOS jumper

LED FEATURES

• 2 x addressable LED strip headers
• 2 x RGB LED strip headers
• 1 x CPU cooler LED strip/RGB LED strip header

BACK PANEL PORTS

• 1 x Q-Flash Plus button
• 2 x SMA antenna connectors (2T2R)
• 1 x DisplayPort
• 1 x HDMI port
• 1 x USB Type-C® port, with USB 3.2 Gen 2 support
• 2 x USB 3.2 Gen 2 Type-A ports (red)
• 5 x USB 3.2 Gen 1 ports
• 4 x USB 2.0/1.1 ports
• 1 x RJ-45 port
• 1 x optical S/PDIF Out connector
• 2 x audio jacks
