ASUS TUF GAMING X670E-PLUS WIFI

Description

CPU

• Support for: AMD Ryzen™ 9000 / 8000 / 7000 Series Processors
• AMD Socket AM5
• AMD X670E Chipset

MEMORY

• 4 x DIMM, Max. 192GB, DDR5 8000+(OC)/ 7800(OC)/ 7600(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200/ 5000/ 4800 ECC & Non-ECC, Un-buffered Memory
  • Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
  • Non-ECC, Un-buffered DDR5 Memroy supports On-Die ECC function.
• Dual Channel Memory Architecture
• Supports AMD Extended Profiles for Overclocking (EXPO™)
• OptiMem II
• Supported memory types, data rate(Speed), and number of DRAM module vary depending on the CPU and memory configuration

EXPANSION SLOT

• CPU:
  • 1 x PCIe 5.0 x16 slot
• Chipset:
  • 1 x PCIe 4.0 x16 slot (supports x4 mode)
  • 1 x PCIe 4.0 x4 slots

STORAGE

• CPU:
  • M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
  • M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
• Chipset:
  • M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes)
    • M.2_2 slot shares bandwidth with SATA6G_1&2. When M.2_2 runs at PCIe x4 mode, SATA6G_1&2 will be disabled.
  • M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
  • 4 x SATA 6Gb/s ports
• AMD RAID Xpert Technology supports both NVMe RAID 0/1/10 and SATA RAID 0/1/10.

AUDIO

• Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC

LAN

• 1 x Realtek 2.5Gb Ethernet
• TUF LANGuard

WI-FI & BLUETOOTH®

• Wi-Fi 6E
• 2×2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
• Supports 2.4/5/6GHz frequency band*
• Bluetooth v5.2
• WiFi 6E 6GHz regulatory may vary between countries.

POWER CONNECTORS

• 1 x 24 pin ATX Power Connector
• 2 x 8 pin 12V Power Connector

INTERNAL USB CONNECTORS

• 1 x USB 3.2 Gen 2 connector (supports USB Type-C®)
• 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
• 3 x USB 2.0 headers support additional 6 USB 2.0 ports

FAN CONNECTORS

• 1 x 4-pin CPU Fan header
• 1 x 4-pin CPU OPT Fan header
• 1 x 4-pin AIO Pump header
• 4 x 4-pin Chassis Fan headers
• 1 x W_PUMP+ header

SYSTEM CONNECTORS

• 3 x Addressable Gen 2 headers
• 1 x AURA RGB header
• 1 x Clear CMOS header
• 1 x COM Port header
• 1 x Front Panel Audio header (AAFP)
• 1 x 20-3 pin System Panel header with Chassis intrude function
• 1 x Thermal Sensor header
• 1 x Thunderbolt™  header

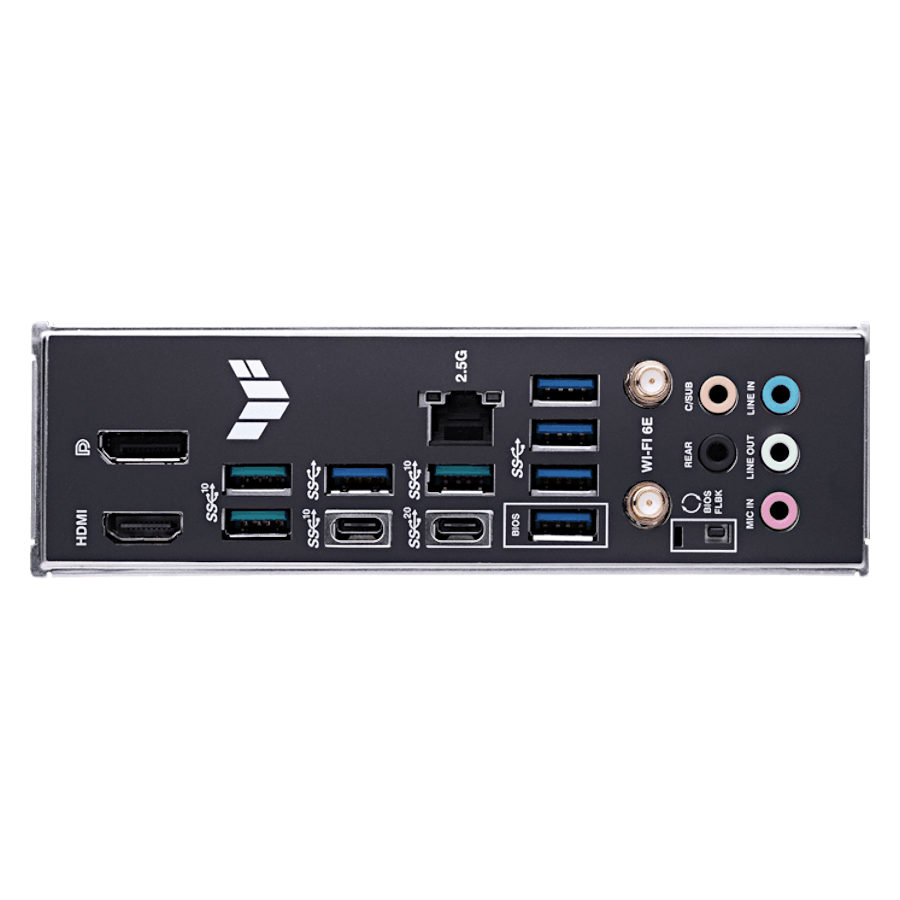

BACK PANEL PORTS

• 1 x USB 3.2 Gen 2×2 port (1 x USB Type-C^®)
• 1 x USB 3.2 Gen 2 ports (1 x USB Type-C^®)
• 3 x USB 3.2 Gen 2 ports (3 x Type-A^®)
• 5 x USB 3.2 Gen 1 ports (5 x Type-A)
• 1 x DisplayPort
• 1 x HDMI^® port
• 1 x Wi-Fi Module
• 1 x Realtek 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x BIOS FlashBack™  button
