Description
CPU
- Support for: AMD Ryzen™ 7000 Series Processors; AMD Ryzen™ 8000 Series Processors; AMD Ryzen™ 9000 Series Processors
- AMD Socket AM5
- AMD B850 Chipset
MEMORY
- Supports up to 8000+MT/s (OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors
- 4 x DIMM slots, max. 256GB, DDR5
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
- ECC and Non-ECC Un-buffered DIMM
- Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
EXPANSION SLOT
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- AMD B850 Chipset:
- 1 x PCIe 4.0 x16 slot (support x4 mode)
- 2 x PCIe 3.0 x16 slots (support x1 mode)
The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
AUDIO
- Realtek ALC1220P 7.1 Surround Sound High Definition Audio CODEC
STORAGE
- AMD Ryzen™ 9000 & 7000 Series Desktop Processors:
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- AMD B850 Chipset:
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
- 4 x SATA 6Gb/s ports
LAN
- Realtek 2.5Gb Ethernet
WI-FI & BLUETOOTH®
- Wi-Fi 6E
- 2×2 Wi-Fi 6E (802.11ax)
- Supports 2.4/5/6GHz frequency band*
- Bluetooth® v5.3
POWER CONNECTORS
- 1 x 24-pin ATX main power connector
- 1 x 8-pin ATX 12V power connectors
- 1 x 4-pin +12V CPU Power connector
INTERNAL USB CONNECTORS
- 1 x USB 5Gbps connector (supports USB Type-C® )
- 1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
- 3 x USB 2.0 headers support 6 additional USB 2.0 ports
FAN CONNECTORS
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
SYSTEM CONNECTORS
- 3 x Addressable RGB Gen 2 headers
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin System Panel header
- 1 x Thunderbolt™ (USB4®) header

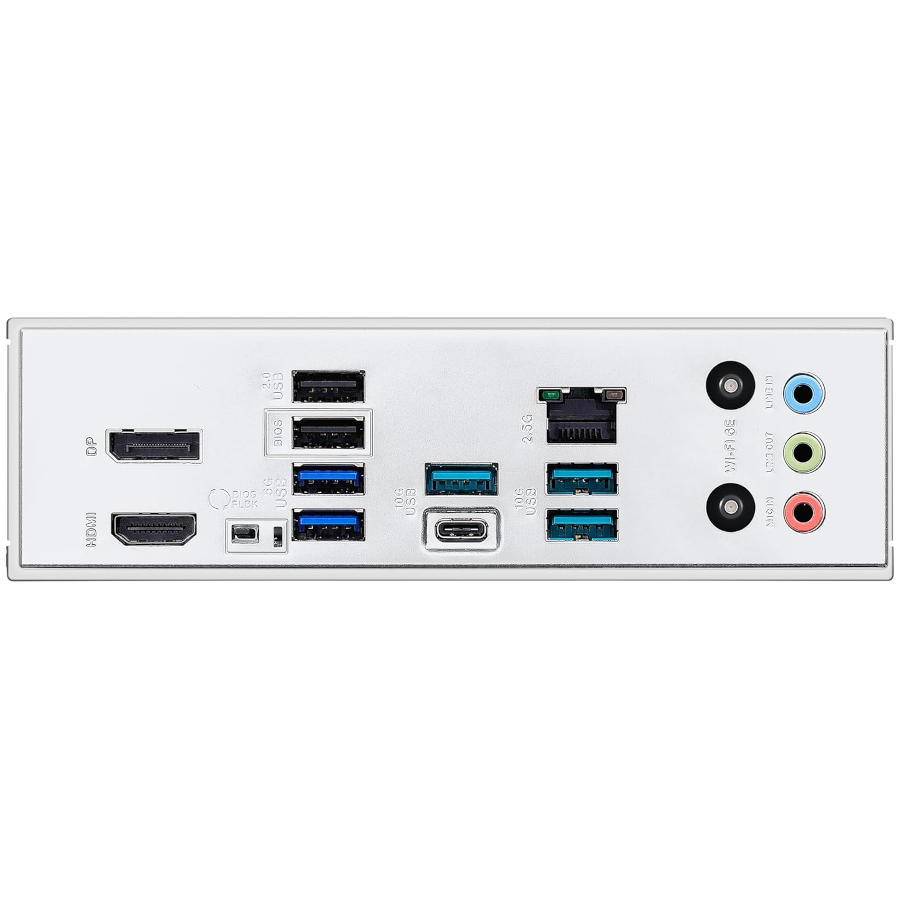

BACK PANEL PORTS
- 1 x USB 10Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (3 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
