Description
CPU
- AMD Socket AM5 for AMD Ryzen™ 9000 & 8000 & 7000 Series Desktop Processors
- AMD B650E Chipset
MEMORY
- 4 x DIMM slots, max. 256GB, DDR5
- Supports up to 8000+MT/s(OC) with Ryzen™ 9000 & 8000 & 7000 Series Processors, ECC and Non-ECC Un-buffered DIMM*
- Dual channel memory architecture
- Supports AMD Extended Profiles for Overclocking (EXPO™)
- ASUS Enhanced Memory Profile (AEMP)
EXPANSION SLOT
- CPU (AMD Ryzen™ 9000 & 7000 Series Desktop Processors):
- 1 x PCIe 5.0 x16 slot (supports x16 mode)
- Chipset:
- 1 x PCIe 4.0 x16 slot (supports x4 mode)
- 2 x PCIe 3.0 x1 slot
The PCIEX16(G3)_1/2 share bandwidth with SATA6G_1/2. The SATA6G_1/2 will be disabled when The PCIEX16(G3)_1 or PCIEX16(G3)_2 runs.
STORAGE
- CPU (AMD Ryzen™ 9000 & 7000 Series Desktop Processors):
- M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
- M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
- Chipset:
- M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x2 mode)
- 4 x SATA 6Gb/s ports
AUDIO
- Realtek 7.1 Surround Sound High Definition Audio CODEC
LAN
- 1 x Realtek 2.5Gb Ethernet
- TUF LANGuard
WI-FI & BLUETOOTH®
- Wi-Fi 6E
- 2×2 Wi-Fi 6E (802.11ax)
- Supports 2.4/5/6GHz frequency band
- WiFi 6E 6GHz regulatory may vary between countries, supported only in Windows 11 or later.
- Bluetooth® v5.3
- The Bluetooth® version may vary, please refer to the Wi-Fi module manufacturer’s website for the latest specifications.
POWER CONNECTORS
- 1 x 24-pin Main Power connector
- 1 x 8-pin +12V Power connector
- 1 x 4-pin +12V Power connector
INTERNAL USB CONNECTORS
- 1 x USB 3.2 Gen 1 connector (supports USB Type-C®)
- 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
- 3 x USB 2.0 headers supports additional 6 USB 2.0 ports
FAN CONNECTORS
- 1 x 4-pin CPU Fan header
- 1 x 4-pin CPU OPT Fan header
- 1 x 4-pin AIO Pump header
- 4 x 4-pin Chassis Fan headers
SYSTEM CONNECTORS
- 3 x Addressable RGB Gen 2 headers
- 1 x Clear CMOS header
- 1 x Chassis Intrusion header
- 1 x COM Port header
- 1 x Front Panel Audio header (F_AUDIO)
- 1 x S/PDIF Out header
- 1 x SPI TPM header (14-1 pin)
- 1 x 10-1 pin System Panel header
- 1 x Thunderbolt™ (USB4®) header

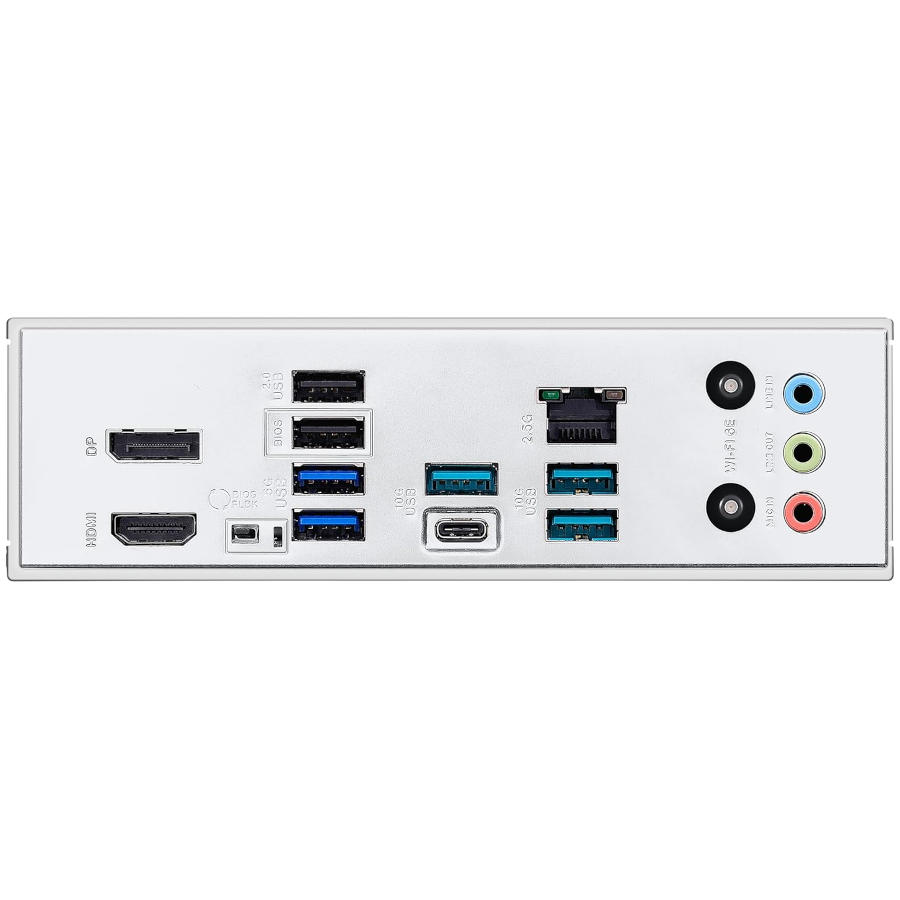

BACK PANEL PORTS
- 1 x USB 10Gbps port (1 x USB Type-C®)
- 3 x USB 10Gbps ports (3 x Type-A)
- 2 x USB 5Gbps ports (2 x Type-A)
- 2 x USB 2.0 ports (2 x Type-A)
- 1 x DisplayPort
- 1 x HDMI™ port
- 1 x Wi-Fi module
- 1 x Realtek 2.5Gb Ethernet port
- 3 x Audio jacks
- 1 x BIOS FlashBack™ button
