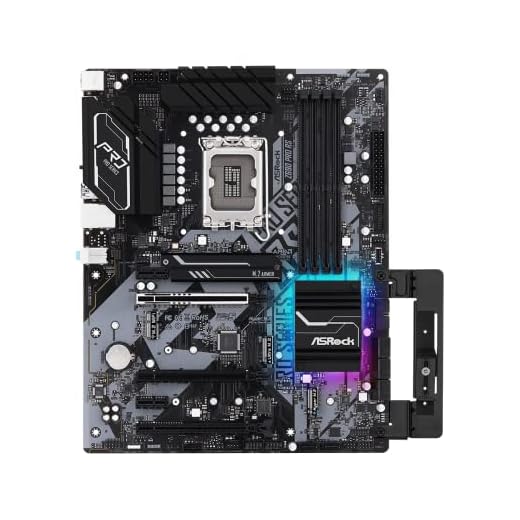

Description
CPU
- Supports 14th, 13th & 12th Gen Intel® Core™ Processors (LGA1700)
- Processor socket LGA1700
- Intel® Z690 Chipset
MEMORY
- Dual Channel DDR4 Memory Technology
- 4 x DDR4 DIMM Slots
- Supports DDR4 non-ECC, un-buffered memory up to 5333+(OC)
- Supports ECC UDIMM memory modules (operate in non-ECC mode)
- Max. capacity of system memory: 128GB**
- Supports Intel® Extreme Memory Profile (XMP) 2.0
EXPANSION SLOT
- CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- Chipset:
- 1 x PCIe 4.0 x16 Slot (PCIE2), supports x4 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE4), supports x4 mode*
- 1 x PCIe 3.0 x1 Slot (PCIE3)*
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel® CNVi (Integrated WiFi/BT)
AUDIO
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
STORAGE
- CPU:
- 1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*
- Chipset:
- 1 x Ultra M.2 Socket (M2_2, Key M), supports type 2230/2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x4 (32 Gb/s) modes*
- 1 x Hyper M.2 Socket (M2_3, Key M), supports type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) mode*
- 8 x SATA3 6.0 Gb/s Connectors
- If M2_2 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled.
Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices
Supports RAID 0, RAID 1 and RAID 5 for M.2 NVMe storage devices
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s Dragon RTL8125BG
POWER CONNECTORS
- 1 x 24-pin ATX main power connector
- 2 x 8-pin ATX 12V power connectors (Hi-Density Power Connector)
INTERNAL USB CONNECTORS
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
FAN CONNECTORS
- 1 x CPU Fan Connector (4-pin)
- CPU_FAN1 supports the fan power up to 1A (12W).
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- CPU_FAN2/WP supports the fan power up to 2A (24W).
- 5 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- CHA_FAN1~5/WP support the fan power up to 2A (24W).
- CPU_FAN2/WP and CHA_FAN1~5/WP can auto detect if 3-pin or 4-pin fan is in use.
SYSTEM CONNECTORS
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)
LED FEATURES
- 1 x RGB LED Header
- 3 x Addressable LED Headers
BACK PANEL PORTS
- 2 x Antenna Ports
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver) (Supports ESD Protection)
- 4 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
- 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
- 1 x BIOS Flashback Button
- HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)
