Description
CPU
- Support for: AMD Ryzen™ 7000 Series Processors
- AMD Socket AM5
- AMD X670E Chipset
MEMORY
- Dual Channel DDR5 Memory Technology
- 4 x DDR5 DIMM Slots
- Supports DDR5 non-ECC, un-buffered memory up to 6600+(OC)*
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules
EXPANSION SLOT
- CPU:
- 1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*
- 1 x PCIe 3.0 x16 Slot (PCIE3), supports x4 mode*
- Chipset:
- 1 x PCIe 3.0 x1 Slot (PCIE2)*
- 1 x Vertical M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
- * Supports NVMe SSD as boot disks
STORAGE
- CPU:
- 1 x Blazing M.2 Socket
- (M2_1, Key M) PCIe Gen 5.0 x4 (128 Gb/s) mode
- Supports type 2260/2280
- (M2_1, Key M) PCIe Gen 5.0 x4 (128 Gb/s) mode
- 1 x Blazing M.2 Socket
- Chipset:
- 3 x Hyper M.2 Socket
- (M2_2, Key M) PCIe Gen 4.0 x4 (64 Gb/s) mode
- Supports type 2242/2260/2280
- (M2_3, Key M) PCIe Gen 4.0 x4 (64 Gb/s) mode
- Supports type 2230/2242/2260/2280
- (M2_4, Key M) PCIe Gen 4.0 x4 (64 Gb/s) mode
- Supports type 2260/2280
- (M2_2, Key M) PCIe Gen 4.0 x4 (64 Gb/s) mode
- 4 x SATA3 6.0 Gb/s Connectors
- 3 x Hyper M.2 Socket
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0, RAID 1 and RAID 10 for M.2 NVMe storage devices
AUDIO
- 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
- Nahimic Audio
LAN
- 1x 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
- 1 x Gigabit LAN 10/100/1000 Mb/s
- Realtek RTL8111
WI-FI & BLUETOOTH®
- 802.11ax Wi-Fi 6E Module
- Supports IEEE 802.11a/b/g/n/ac/ax
- Supports Bluetooth 5.2 + High speed class II
- Supports Dual-Band 2×2 with extended 6GHz band* support
- Wi-Fi 6E (6GHz band) will be supported by Microsoft® Windows® 11. The availability will depend on the different regulation status of each country and region. It will be activated (for supported countries) through Windows Update and software updates once available.
- A 6GHz compatible router is required for 6E functionality.
POWER CONNECTORS
- 1 x 24 pin ATX Power Connector
- 2 x 8 pin 12V Power Connector
INTERNAL USB CONNECTORS
- 1 x Front Panel Type C USB 3.2 Gen2x2 Header
- 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports)
- 2 x USB 2.0 Headers (Support 4 USB 2.0 ports)
FAN CONNECTORS
- 1 x CPU Fan Connector (4-pin)
- CPU_FAN1 supports the fan power up to 1A (12W).
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- CPU_FAN2/WP supports the fan power up to 2A (24W).
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- CHA_FAN1~4/WP support the fan power up to 2A (24W).
- CPU_FAN2/WP and CHA_FAN1~4/WP can auto detect if 3-pin or 4-pin fan is in use.
SYSTEM CONNECTORS
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x RGB LED Header
- Supports in total up to 12V/3A, 36W LED Strip
- 3 x Addressable LED Headers
- Support in total up to 5V/3A, 15W LED Strip
- 1 x Front Panel Audio Connector
- 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

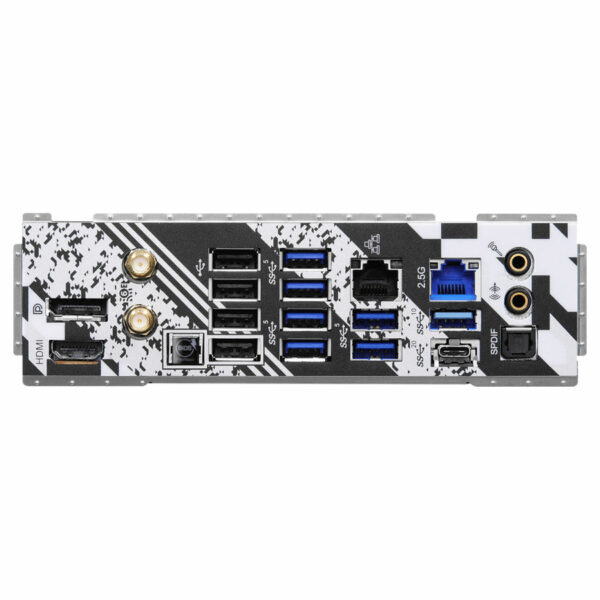

BACK PANEL PORTS
- 2 x Antenna Ports
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x Optical SPDIF Out Port
- 1 x USB 3.2 Gen2x2 Type-C Port (20 Gb/s)
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 6 x USB 3.2 Gen1 Ports
- 4 x USB 2.0 Ports
- 2 x RJ-45 LAN Ports
- 1 x BIOS Flashback Button
- 1 x Line Out Jack (Gold Audio Jack)
- 1 x Microphone Input Jack (Gold Audio Jack)
