Description
DIMENSIONS
- Micro ATX Form Factor
- 9.6 in. x 9.6 in. (24.4 cm x 24.4 cm)
CPU
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series
- Processor socket AM4
- AMD B550 Chipset
MEMORY
- 4 x DDR4 DIMM Slots
- AMD Ryzen series CPUs (Vermeer) support DDR4 4600+(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
- Max. capacity of system memory: 128GB
- Supports Extreme Memory Profile (XMP) memory modules
- Dual Channel DDR4 Memory Technology
EXPANSION SLOT
AMD Ryzen series CPUs (Vermeer and Matisse)
- 2 x PCIe x16 Slots
- PCIE1: Gen4x16 mode
- PCIE3: Gen3x4 mode
- Supports NVMe SSD as boot disks
- 1 x PCIe Gen3x1 Slot
- 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module
AUDIO
- 7.1 CH HD Audio (Realtek ALC897 Audio Codec)
- Supports Surge Protection
- Nahimic Audio
STORAGE
- 4 x SATA3 6.0 Gb/s Connectors
- 1 x Hyper M.2 Socket (M2_1, Key M)
- Supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode (with Vermeer, Matisse)
- Supports NVMe SSD as boot disks
- 1 x M.2 Socket (M2_2, Key M)
- Supports type 2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) modes
- Supports NVMe SSD as boot disks
- Supports RAID 0, RAID 1 and RAID 10 for SATA storage devices
- Supports RAID 0 and RAID 1 for M.2 NVMe storage devices
LAN
- 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
- Dragon RTL8125BG
POWER CONNECTORS
- 1x 24-pin ATX main power connector
- 1x 8-pin ATX 12V power connector
INTERNAL USB CONNECTORS
- 1x USB 3.2 Gen 1 header (Supports 2 USB 3.2 Gen1 ports)
- 2x USB 2.0 headers (Support 4 USB 2.0 ports)
- 1 x Front Panel Type C USB 3.2 Gen1 Header
FAN CONNECTORS
- 1 x CPU Fan Connector (4-pin)
- The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
- 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)
- The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
- 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)
- The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
- CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in use.
SYSTEM CONNECTORS
- 1 x SPI TPM Header
- 1 x Power LED and Speaker Header
- 1 x Front Panel Audio Connector
LED FEATURES
- 2x addressable LED strip headers
- 2x RGB LED strip headers
- 1x CPU cooler LED strip/RGB LED strip header

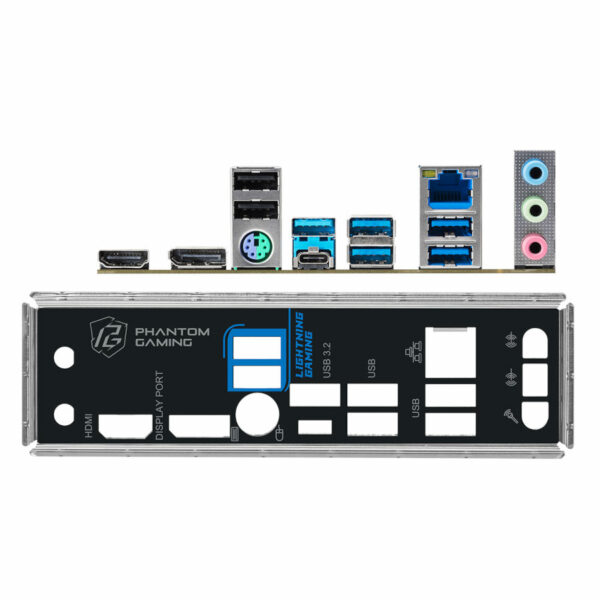

BACK PANEL PORTS
- 2 x Antenna Mounting Points
- 1 x PS/2 Mouse/Keyboard Port
- 1 x HDMI Port
- 1 x DisplayPort 1.4
- 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)
- 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)
- 4 x USB 3.2 Gen1 Ports
- 2 x USB 2.0 Ports
- 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
- HD Audio Jacks: Line in / Front Speaker / Microphone
